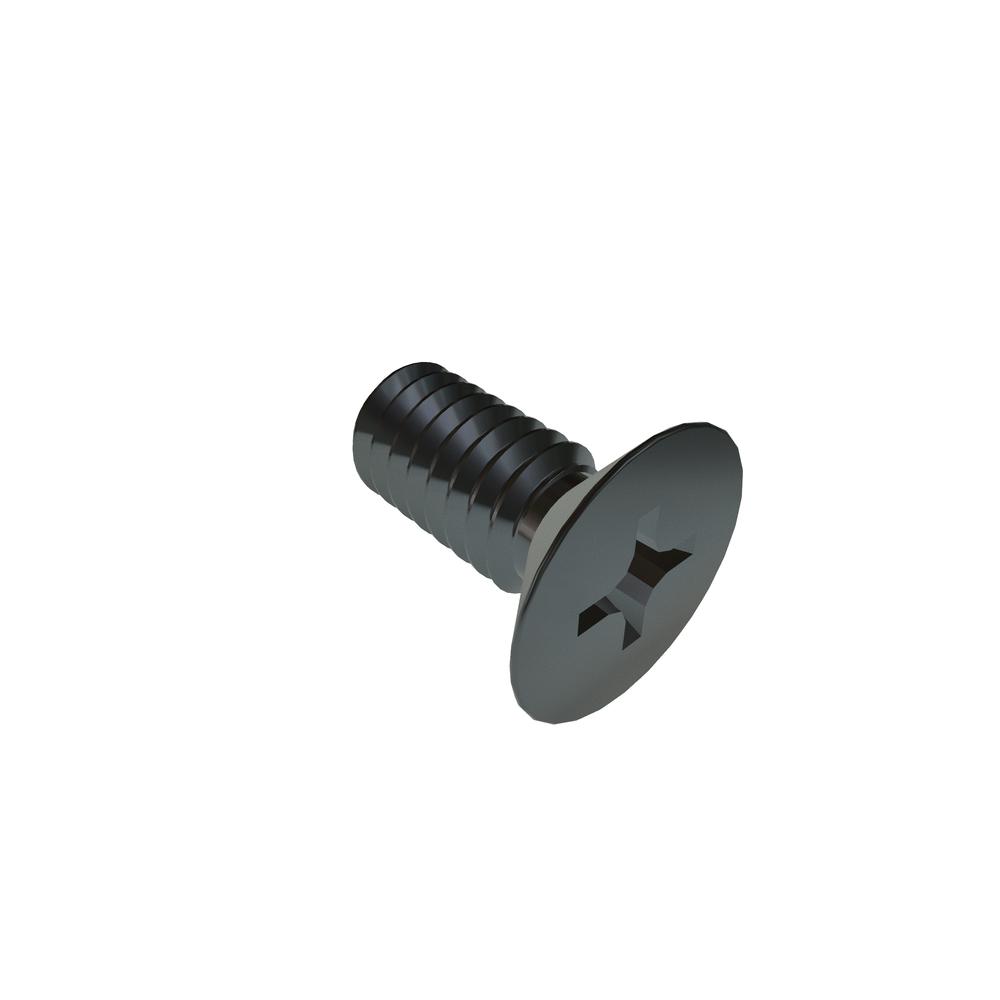

8C37PFHZR/P
8-32 X 3/8 PHIL FLAT 100 DEG PATCH STL
Alternate Codes: N/A
ZN CR3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat 100 Degree |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.162in |
| Head Height | 0.072in |
| Recess Depth (Min.) | 0.067in |
| Recess Depth (Max.) | 0.090in |
| Brand | VARIED |
| Length | 3/8in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.282in |
