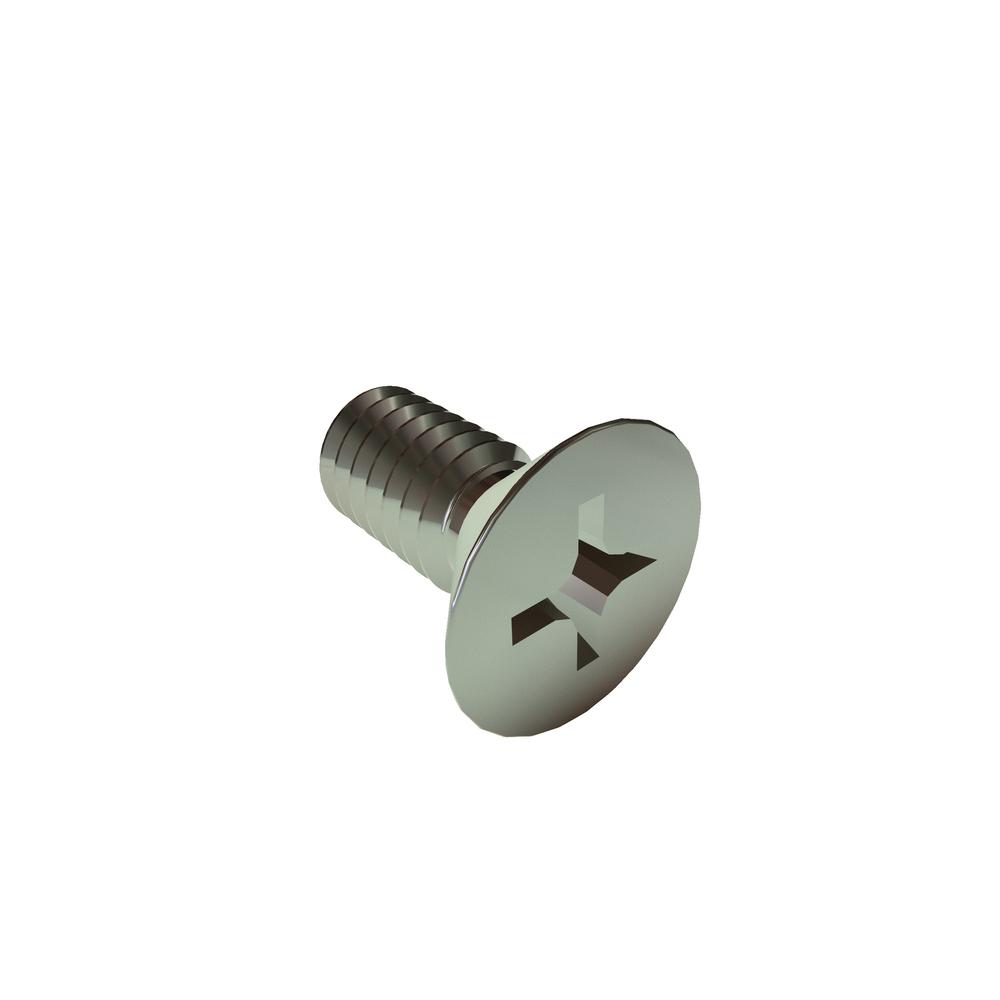

8C37PFMS
8-32 X 3/8 PHIL FLAT SST RoHS
Alternate Codes: 005273, 01423-1, 049610, 25-0016-06, 2600166-02, 2806-0214-06, 475-0014, 490-0082, 516369, 6000025-806
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.142 | $0.087 | $0.063 | $0.049 | $0.046 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.182in |
| Head Height | 0.100in |
| Recess Depth (Min.) | 0.087in |
| Recess Depth (Max.) | 0.110in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91771A192 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
