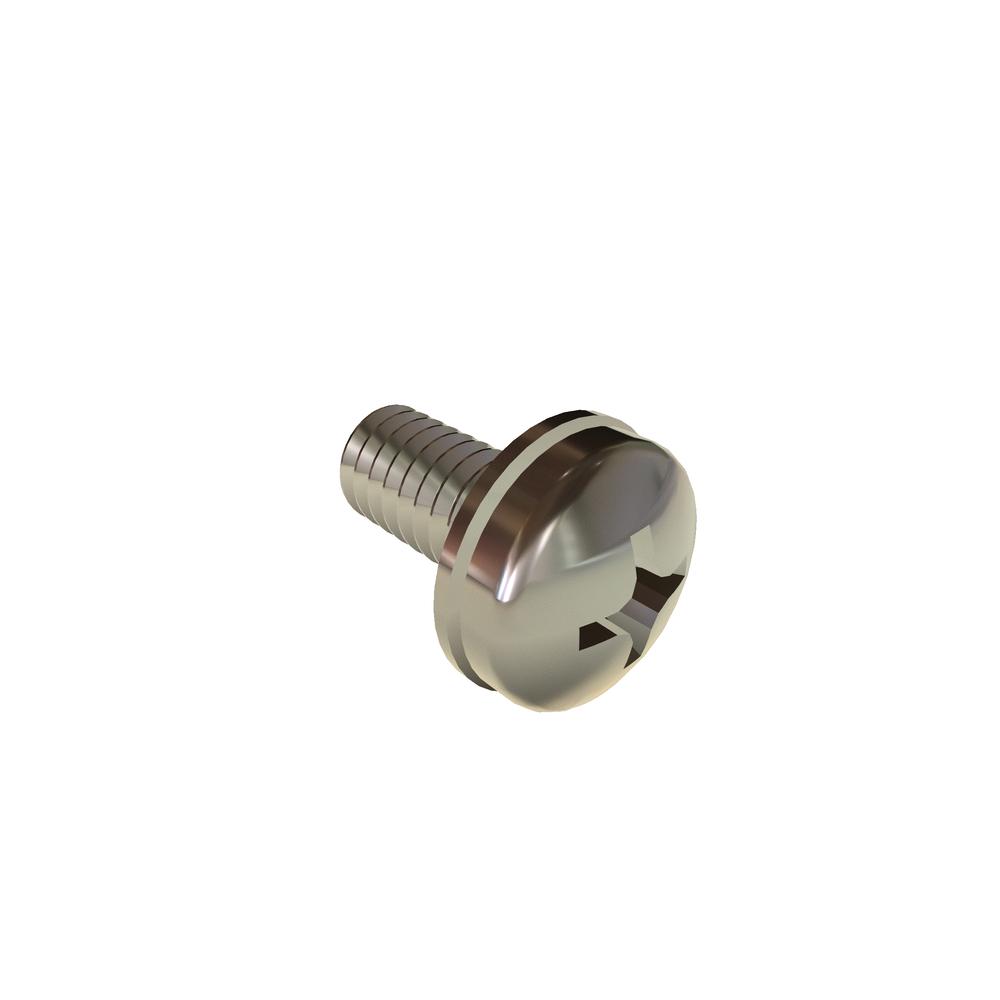

Image for reference purposes only. Actual product may vary.
8C37PPIS
8-32 X 3/8 PHIL PAN INT SEMS SST RoHS
Alternate Codes: 10-1257, 95345A071
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.452 | $0.238 | $0.188 | $0.174 | $0.146 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 3/8in |
| Thread Size | 8-32 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 0.175in |
| Washer Type | Internal Tooth Lock Washer |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Lock Washer Thickness (Max.) | 0.023in |
| Lock Washer Outside Diameter (Min.) | 0.327in |
| Lock Washer Outside Diameter (Max.) | 0.338in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Head Radius (Min.) | 0.015in |
| Additional Industry Cross Reference | 95345A071 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.018in |
