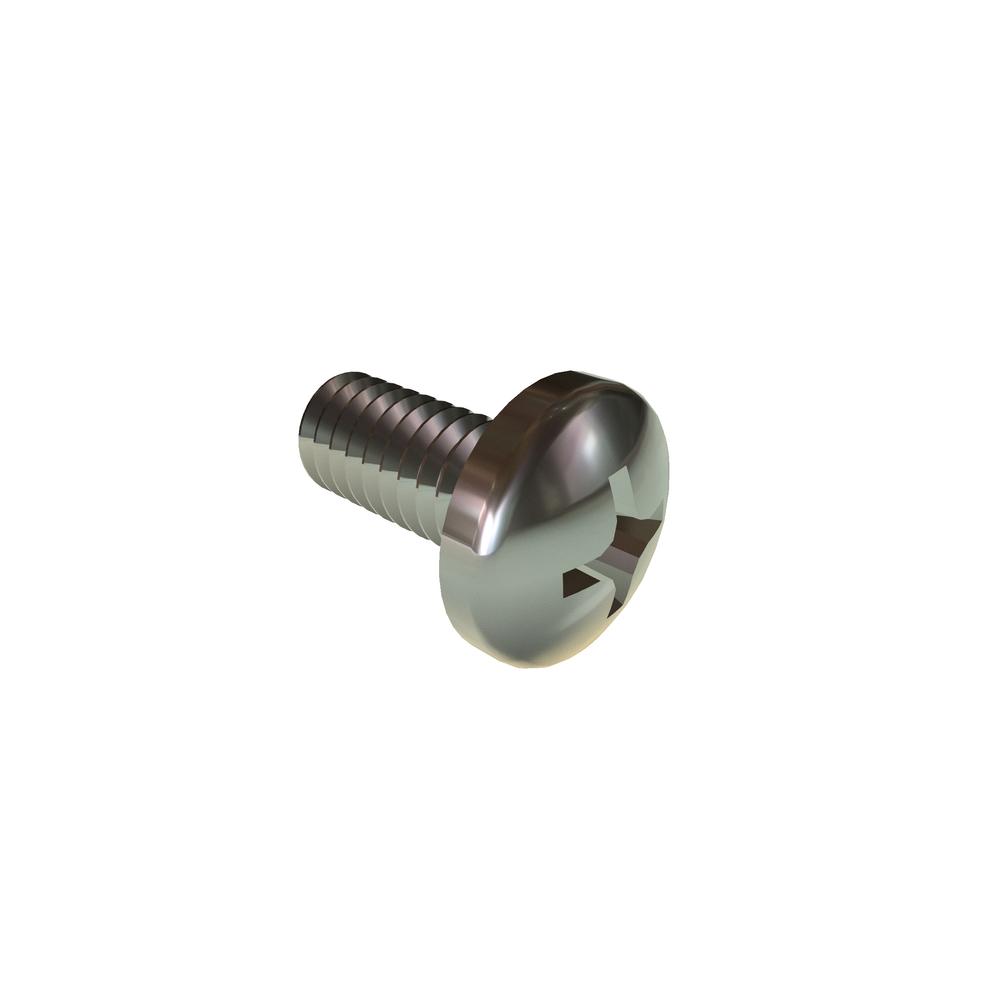

8-32 X 3/8 PH PAN SST RoHS

8C37PPMS

Item Id8C37PPMS
Description8-32 X 3/8 PHIL PAN SST RoHS
Alternate Codes004806, 01965-1, 031G109015-07, 0439-1325, 100-00-127, 11129, 12-222008-06, 124993, 25-0015-06, 2806-0114-06, 3690-01997, 477-0040, 490-0085, 581918-06, 613-5150, 701-0314-006, 701-0530-012, 901199-0006, BTT210163-003, P0491
Extended Description
PackagingEA
Additional Industry Cross Reference91772A192
BrandVARIED
Drive Size2
Drive TypePhillips
FinishPlain
Head Diameter (Max.)0.322in
Head Diameter (Min.)0.306in
Head Height (Max.)0.115in
Head Height (Min.)0.105in
Head Radius (Min.)0.015in
Head TypePan
MaterialStainless Steel
Meets (Standard)ASME B18.6.3
Nominal Diameter0.164in
Recess Depth (Max.)0.097in
Recess Depth (Min.)0.071in
Recess Diameter0.175in
RoHSCompliant
Thread Size8-32
Thread TypeUnified Coarse Thread (UNC)
UnitsInch
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
