8C37PPQS

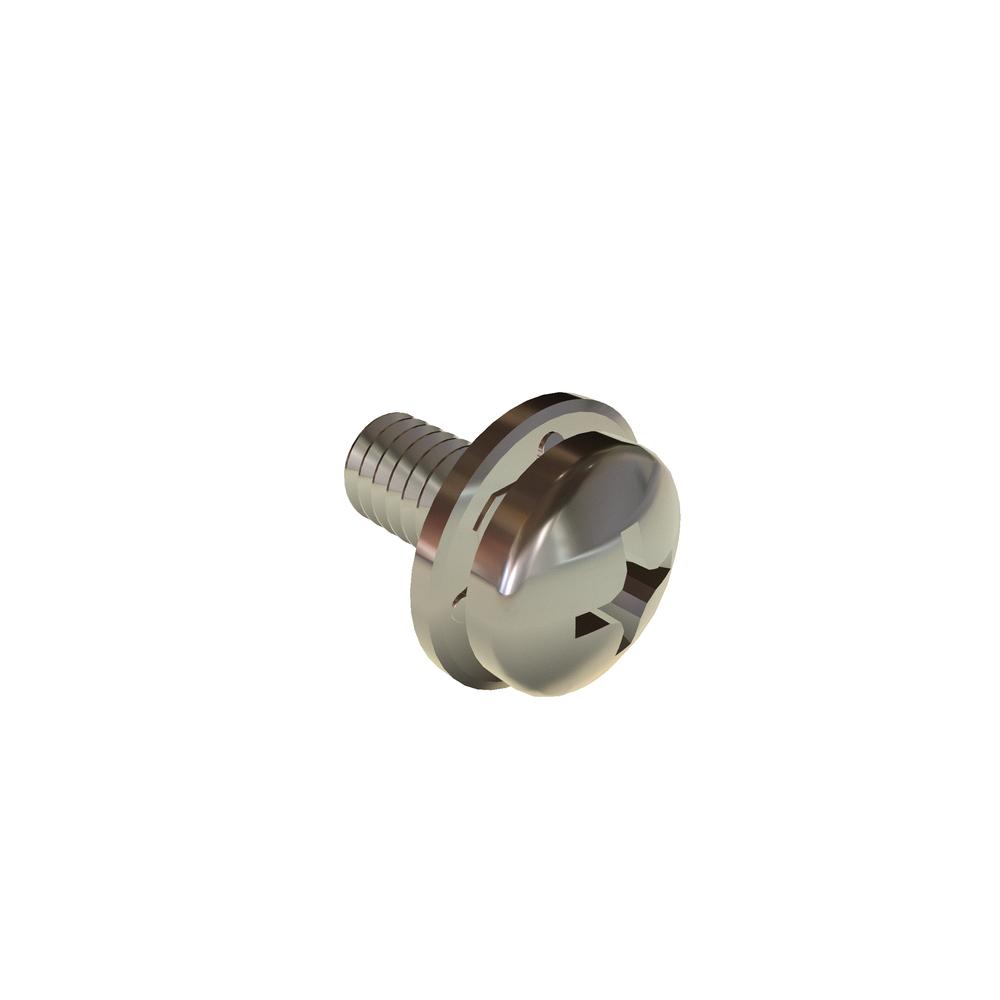

8-32 X 3/8 PH PAN SQ CONE SEMS SST RoHS
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.468 | $0.246 | $0.195 | $0.180 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Lock Washer Height (Min.) | 0.050in |
| Lock Washer Height (Max.) | 0.073in |
| Lock Washer Outside Diameter (Min.) | 0.370in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Washer Type | Square Cone Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.030in |
