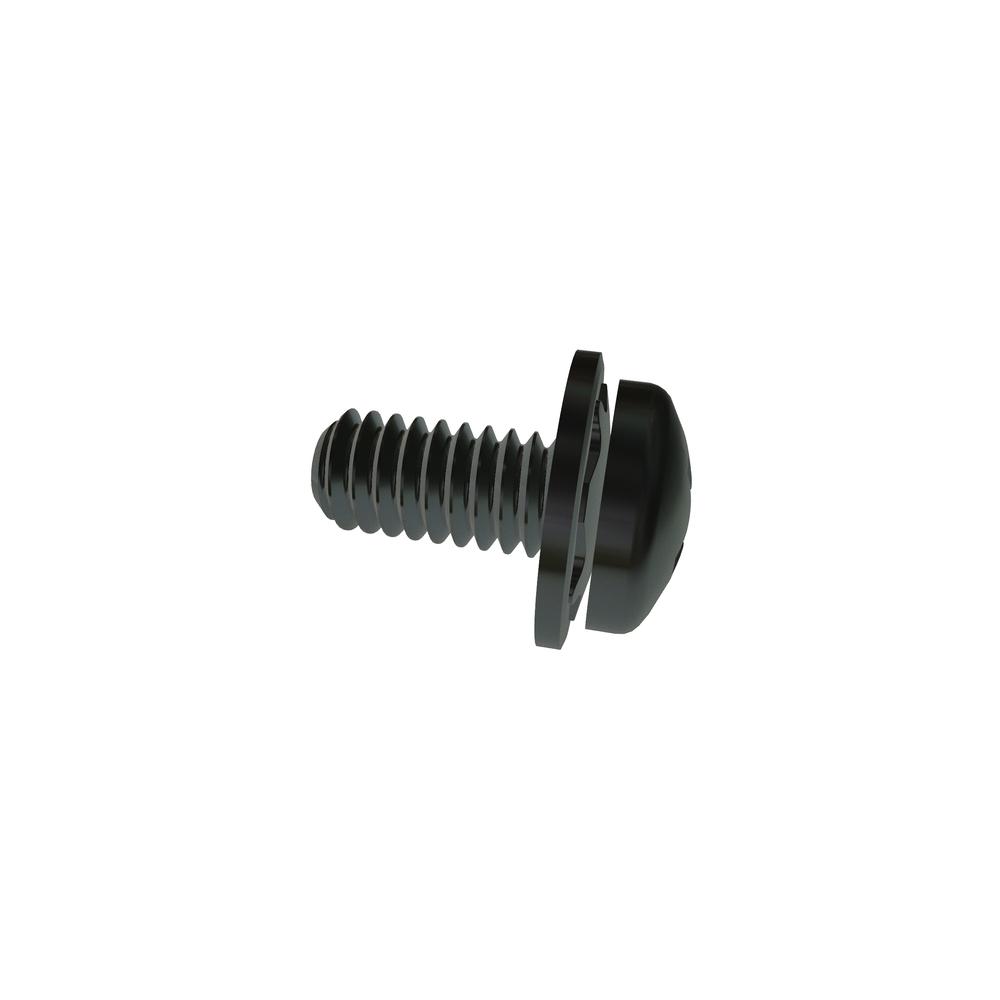

8-32 X 3/8 PH PAN SQ CONE SEMS STL ZN
8C37PPQZR
| Item Id | 8C37PPQZR |
| Description | 8-32 X 3/8 PH PAN SQ CONE SEMS STL ZN |
| Alternate Codes | 2510-0315, 90400A192 |
| Extended Description | CR3 |
| Packaging | EA |
| Additional Industry Cross Reference | 90400A192 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 3/8in |
| Lock Washer Height (Max.) | 0.073in |
| Lock Washer Height (Min.) | 0.050in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Lock Washer Outside Diameter (Min.) | 0.370in |
| Lock Washer Thickness (Min.) | 0.030in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.164in |
| Penetration Depth (Max.) | 0.097in |
| Penetration Depth (Min.) | 0.071in |
| Recess Diameter | 0.175in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Washer Type | Square Cone Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
