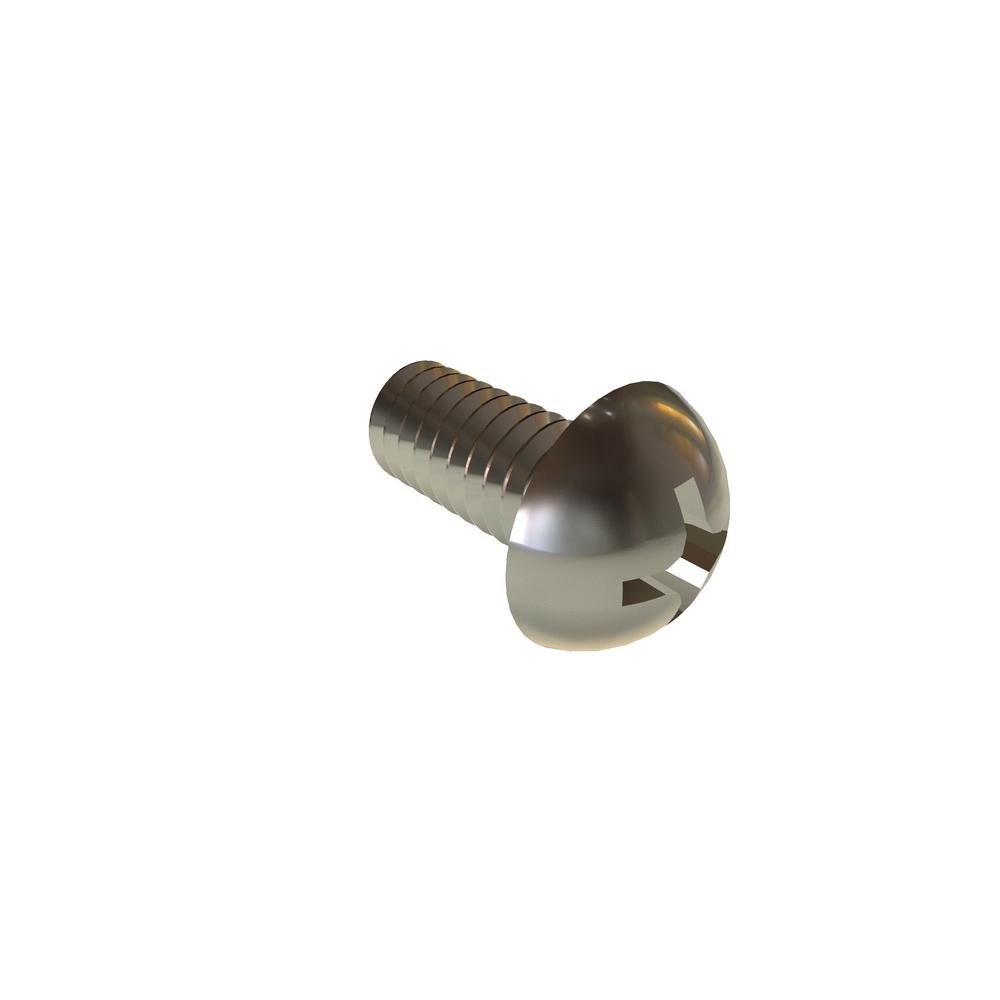

Image for reference purposes only. Actual product may vary.
8C37PRMS
8-32 X 3/8 PHIL RD SST RoHS
Alternate Codes: 100-03-626, 91773A192
8-32 X 3/8 Phillips Round Head Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs |
|---|---|
| $0.141 | $0.085 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.37in |
| Thread Size | 8-32 |
| Finish | Plain |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Round |
| Drive Size | 2 |
| Recess Diameter | 0.171in |
| Recess Depth (Min.) | 0.064in |
| Recess Depth (Max.) | 0.090in |
| Additional Industry Cross Reference | 91773A192 |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.309in |
| Head Diameter (Min.) | 0.287in |
| Head Height (Max.) | 0.120in |
| Head Height (Min.) | 0.107in |
