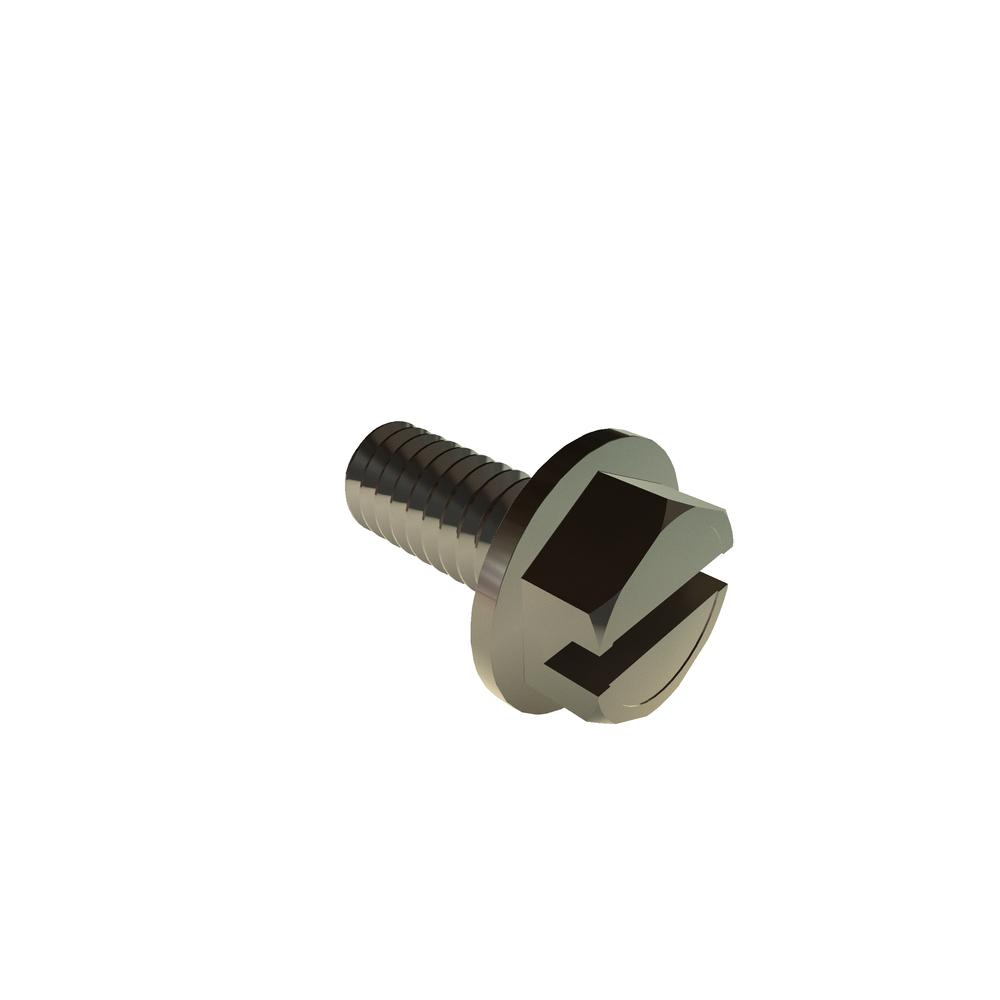

8C37SHWS
8-32 X 3/8 SLOT HWH SST RoHS
Alternate Codes: 90316A192
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | Aug-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.052in |
| Slot Depth (Max.) | 0.074in |
| Slot Width (Min.) | 0.045in |
| Slot Width (Max.) | 0.054in |
| Thickness (Min.) | 0.019in |
| Brand | VARIED |
| Type | Hex Washer Head |
| Additional Industry Cross Reference | 90316A192 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Max.) | 0.110in |
| Head Height (Min.) | 0.096in |
| Width Across Flat (Max.) | 0.250in |
| Width Across Flat (Min.) | 0.244in |
| Thickness (Max.) | 0.031in |
| Washer Diameter (Max.) | 0.348in |
| Washer Diameter (Min.) | 0.322in |
