8C37SRMS

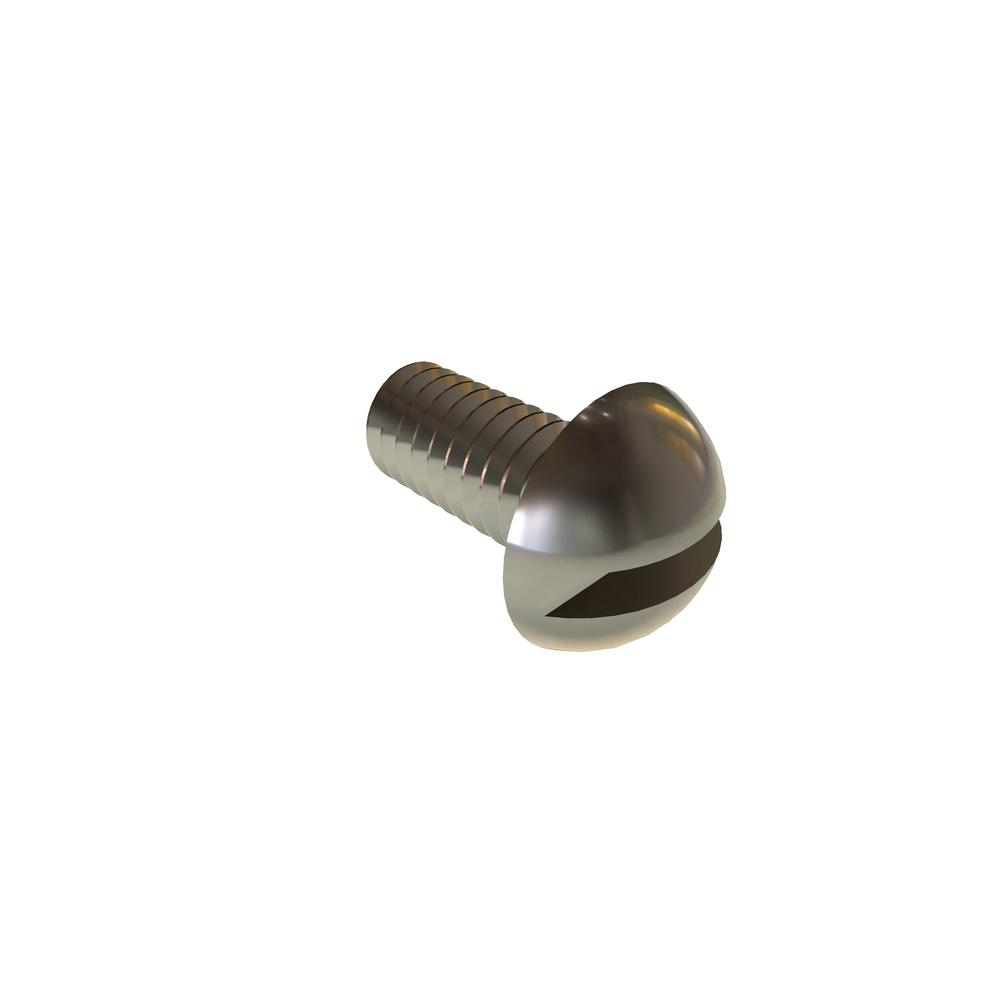

8-32 X 3/8 SLOT RD SST RoHS
Alternate Codes: 12-102008-06, 91783A192
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.189 | $0.113 | $0.095 | $0.077 | $0.068 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Round |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.058in |
| Slot Depth (Max.) | 0.077in |
| Slot Width (Min.) | 0.045in |
| Slot Width (Max.) | 0.054in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91783A192 |
| Length | 0.37in |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.309in |
| Head Diameter (Min.) | 0.287in |
| Head Height (Max.) | 0.120in |
| Head Height (Min.) | 0.107in |
