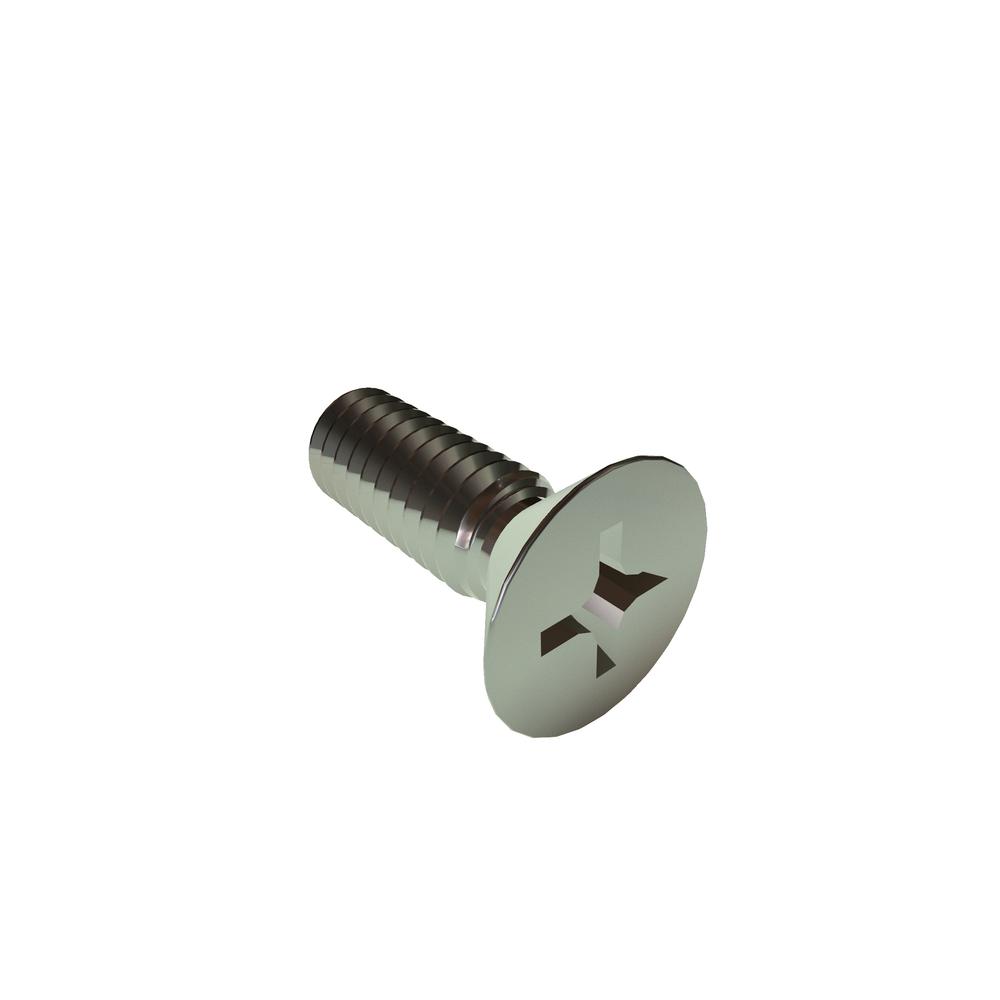

8-32 X 1/2 PHIL FLAT SST RoHS
8C50PFMS
| Item Id | 8C50PFMS |
| Description | 8-32 X 1/2 PHIL FLAT SST RoHS |
| Alternate Codes | 005274, 02008-1, 12-212008-08, 124050, 2510342, 2801-0214-08, 475-0015, 516840, 902262-0008, 915-12011-00, P1878 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A194 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Head Height | 0.100in |
| Head Type | Flat |
| Length | 0.50in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.164in |
| Recess Depth (Max.) | 0.110in |
| Recess Depth (Min.) | 0.087in |
| Recess Diameter | 0.182in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
