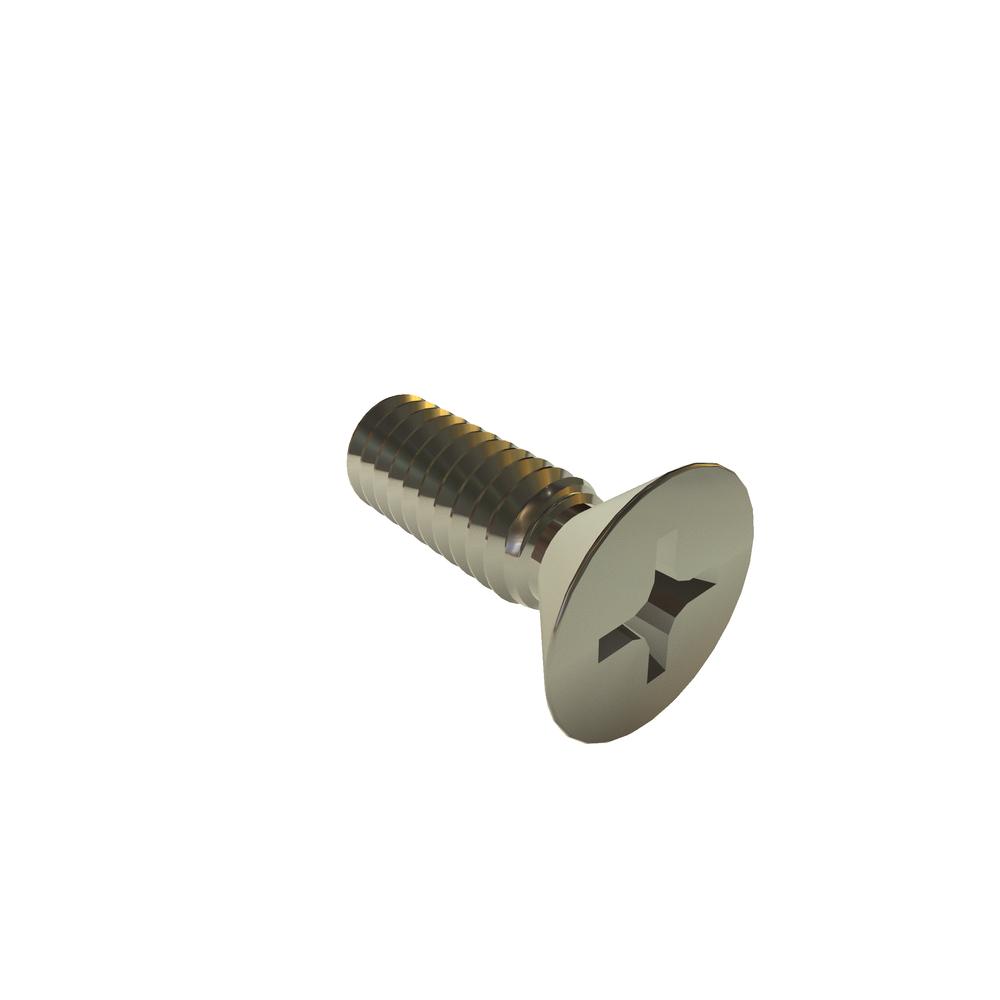

8C50PFMS/CAPTIVE
8-32 X 1/2 PH FLAT CAPTIVE SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-49 pcs |
|---|
| $3.263 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.182in |
| Head Height | 0.100in |
| Recess Depth (Min.) | 0.087in |
| Recess Depth (Max.) | 0.110in |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
