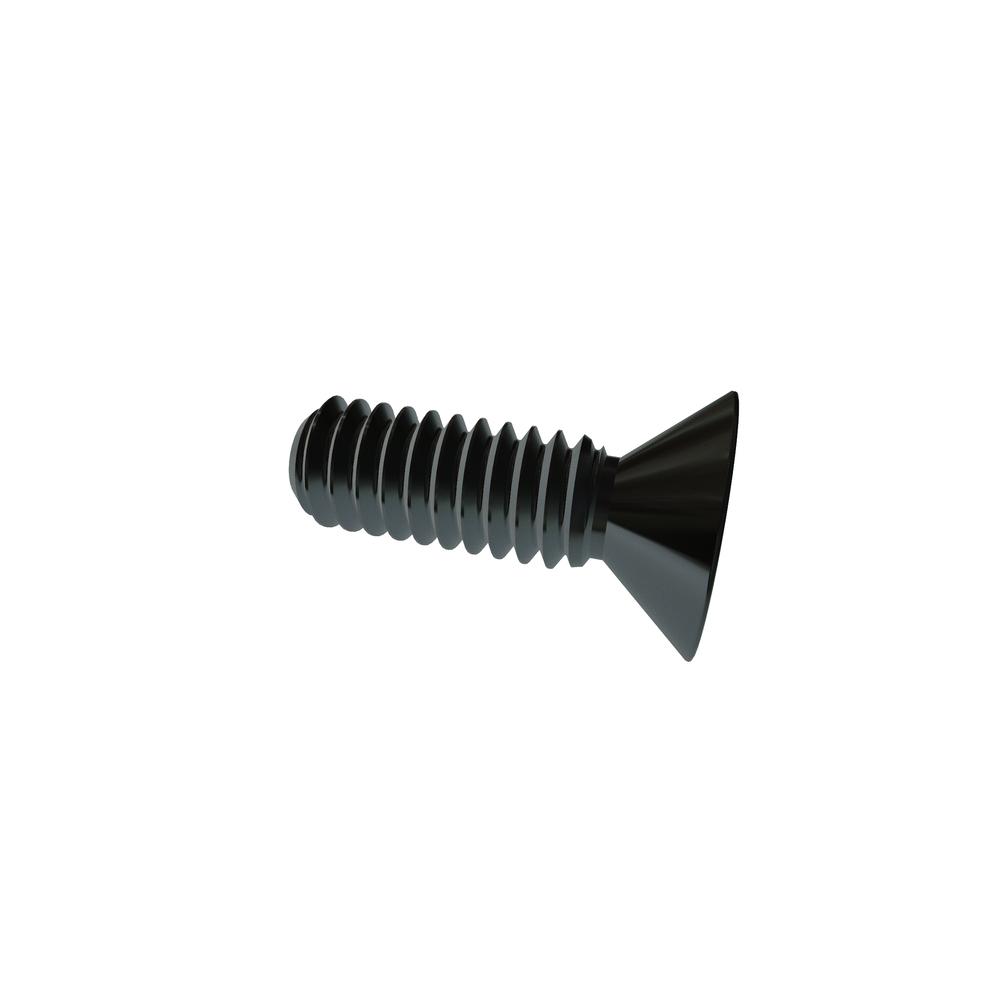

8C50PFMZR
8-32 X 1/2 PHIL FLAT STL ZN CR3
Alternate Codes: 011110, 0301-0135, 031G109030-09, 71082050, 7310-8500, 90273A194, P2547
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.146 | $0.088 | $0.073 | $0.060 | $0.053 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.182in |
| Head Height | 0.100in |
| Recess Depth (Min.) | 0.087in |
| Recess Depth (Max.) | 0.110in |
| Brand | VARIED |
| Length | 0.50in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
