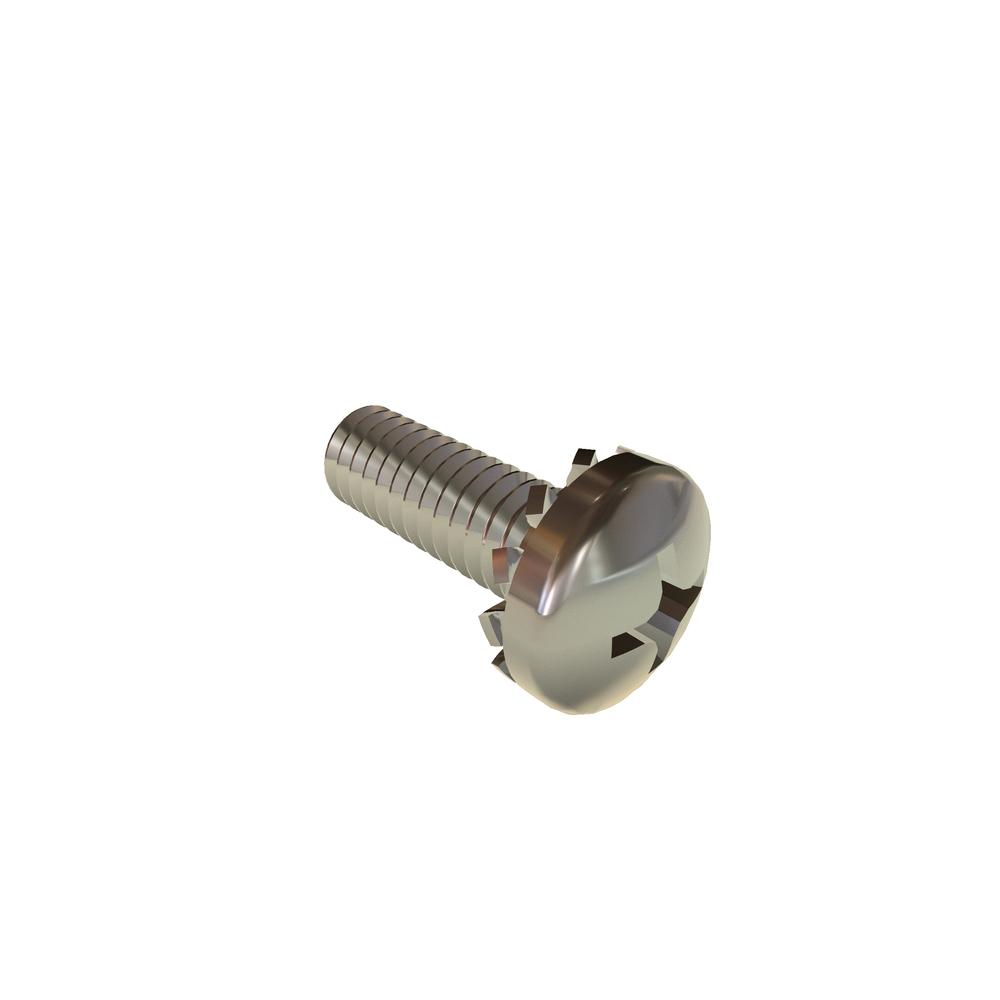

8-32 X 1/2 PHIL PAN EXT SEMS SST RoHS

8C50PPES

Item Id8C50PPES
Description8-32 X 1/2 PHIL PAN EXT SEMS SST RoHS
Alternate Codes050546
Extended Description
PackagingEA
Additional Industry Cross Reference95345A538
BrandVARIED
Drive Size2
Drive TypePhillips
FinishPlain
Head Diameter (Max.)0.322in
Head Diameter (Min.)0.306in
Head Height (Max.)0.115in
Head Height (Min.)0.105in
Head Radius (Min.)0.015in
Head TypePan
Length1/2in
Lock Washer Outside Diameter (Max.)0.320in
Lock Washer Outside Diameter (Min.)0.305in
Lock Washer Thickness (Max.)0.023in
Lock Washer Thickness (Min.)0.018in
MaterialStainless Steel
Meets (Standard)ASME B18.6.3
Nominal Diameter0.164in
Penetration Depth (Max.)0.097in
Penetration Depth (Min.)0.071in
Recess Diameter0.175in
RoHSCompliant
Thread Size8-32
Thread TypeUnified Coarse Thread (UNC)
UnitsInch
Washer TypeExternal Tooth Lock Washer
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
