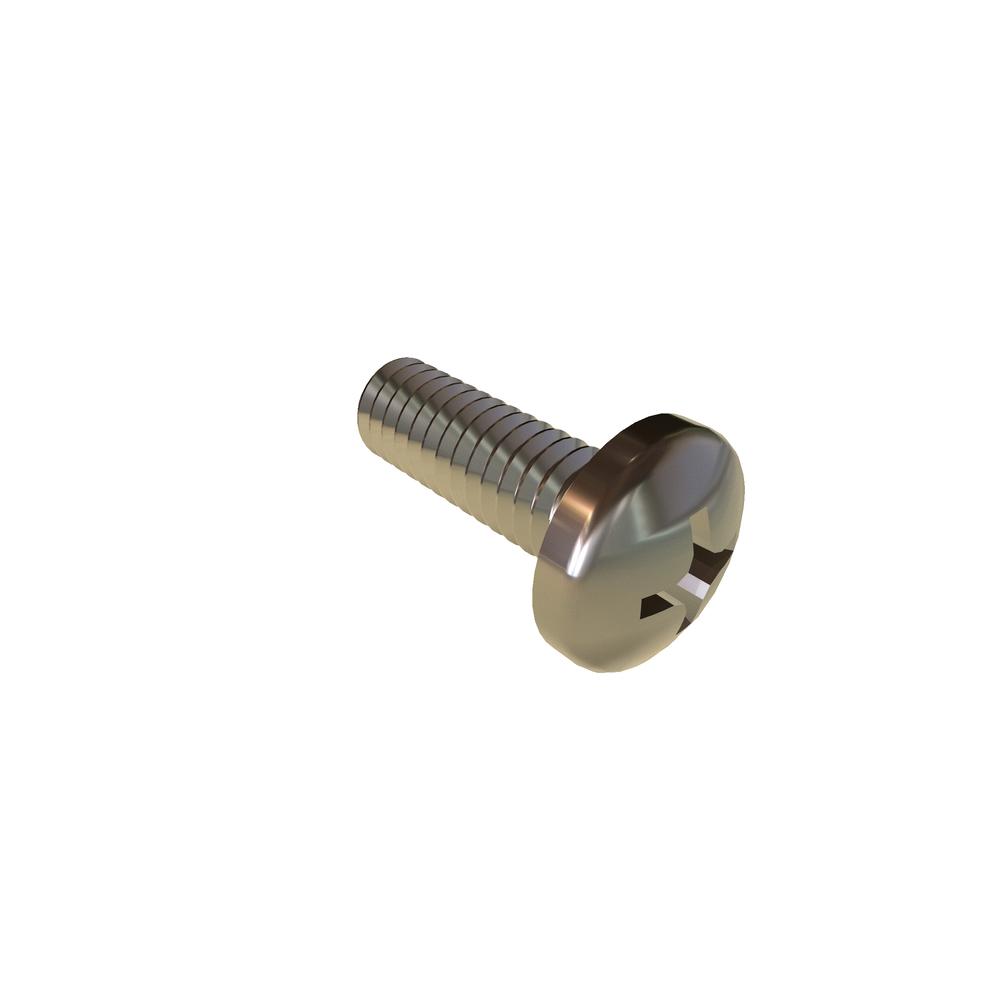

Image for reference purposes only. Actual product may vary.
8C50PPMS/SEEL
8-32 X 1/2 PH PAN SEELSKREW SST RoHS
Alternate Codes: MS3212-25
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $1.426 | $0.907 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.164in |
| Thread Size | 8-32 |
| Finish | Plain |
| Recess Depth (Max.) | 0.097in |
| Recess Depth (Min.) | 0.071in |
| Recess Diameter | 0.175in |
| O-Ring Thickness | 0.047in |
| O-Ring Diameter | 0.257in |
| Brand | APM HEXSEAL |
| Drive Type | Phillips |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Drive Size | 2 |
| Head Radius (Min.) | 0.015in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
