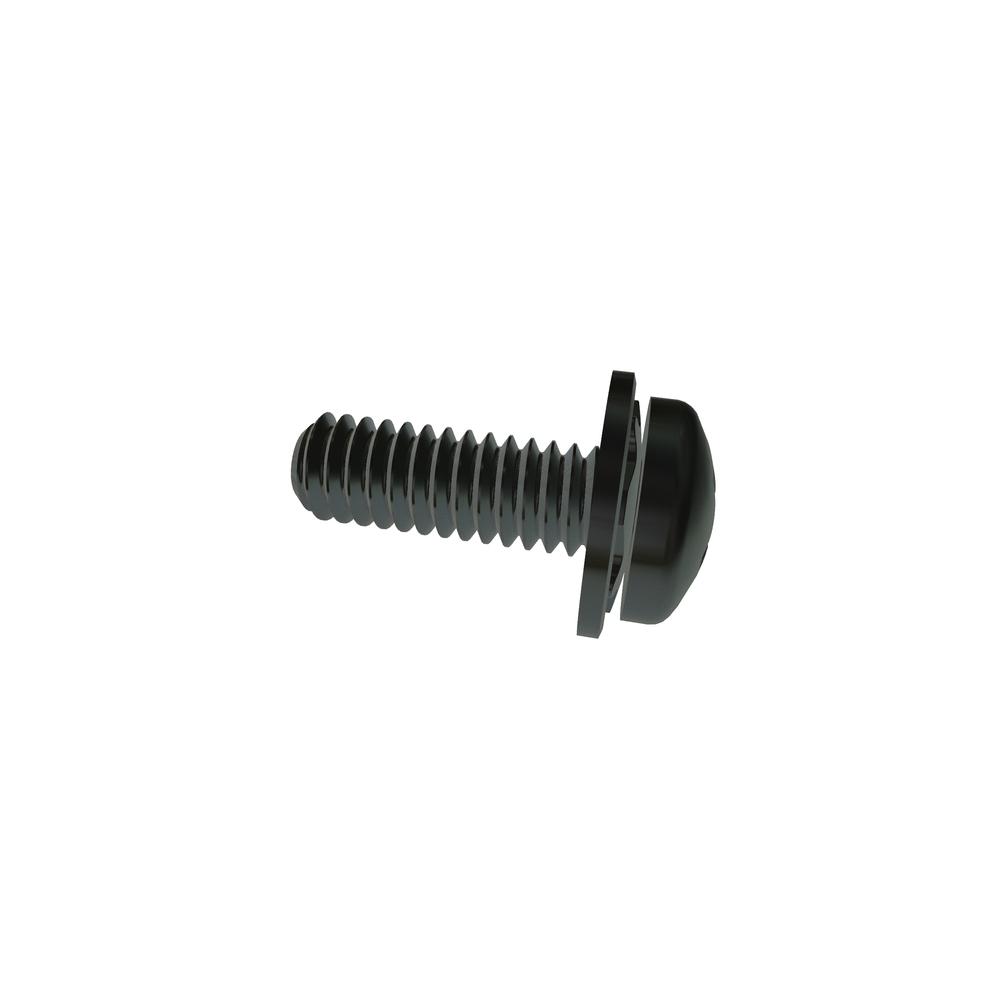

Image for reference purposes only. Actual product may vary.
8C50PPQZR
8-32 X 1/2 PH PAN SQ CONE SEMS STL ZN
Alternate Codes: 90400A194
CR3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 1/2in |
| Thread Size | 8-32 |
| Finish | Zinc Cr3 |
| Recess Diameter | 0.175in |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Lock Washer Height (Min.) | 0.050in |
| Lock Washer Height (Max.) | 0.073in |
| Lock Washer Outside Diameter (Min.) | 0.370in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Head Radius (Min.) | 0.015in |
| Additional Industry Cross Reference | 90400A194 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.030in |
