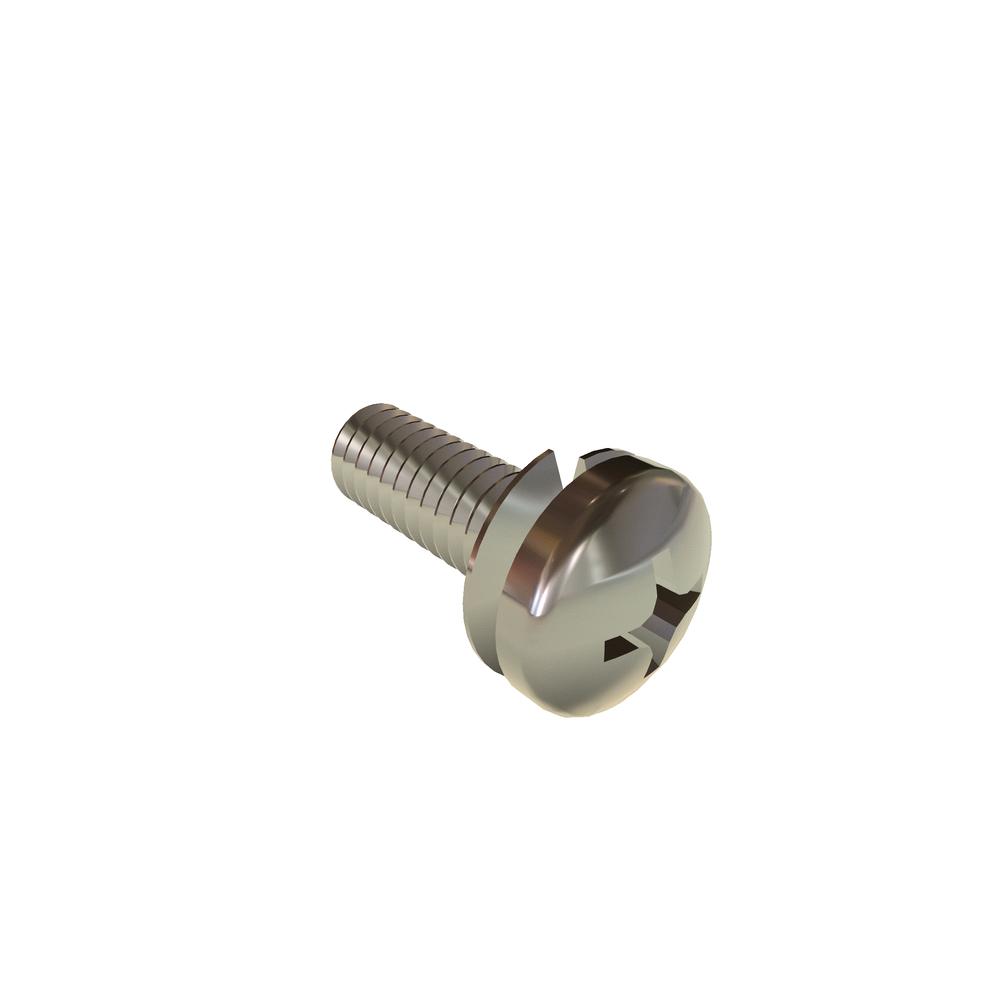

8C50PPSS/3/8OD
8-32 X 1/2 PH PAN DBL SEM SL FW- 3/8 OD
Alternate Codes: N/A
F/W OD=3/8
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|---|
| $1.746 | $1.343 | $1.091 | $0.970 | $0.873 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.078in |
| Lock Washer Outside Diameter (Min.) | 0.305in |
| Lock Washer Outside Diameter (Max.) | 0.319in |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Length | 1/2in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.031in |
| Flat Washer Thickness (Min.) | 0.036in |
| Flat Washer Thickness (Max.) | 0.045in |
| Flat Washer Outside Diameter (Min.) | 0.495in |
| Flat Washer Outside Diameter Max | 0.508in |
| Lock Washer Inside Diameter (Min.) | 0.149in |
| Lock Washer Inside Diameter (Max.) | 0.155in |
