8C50SHWS

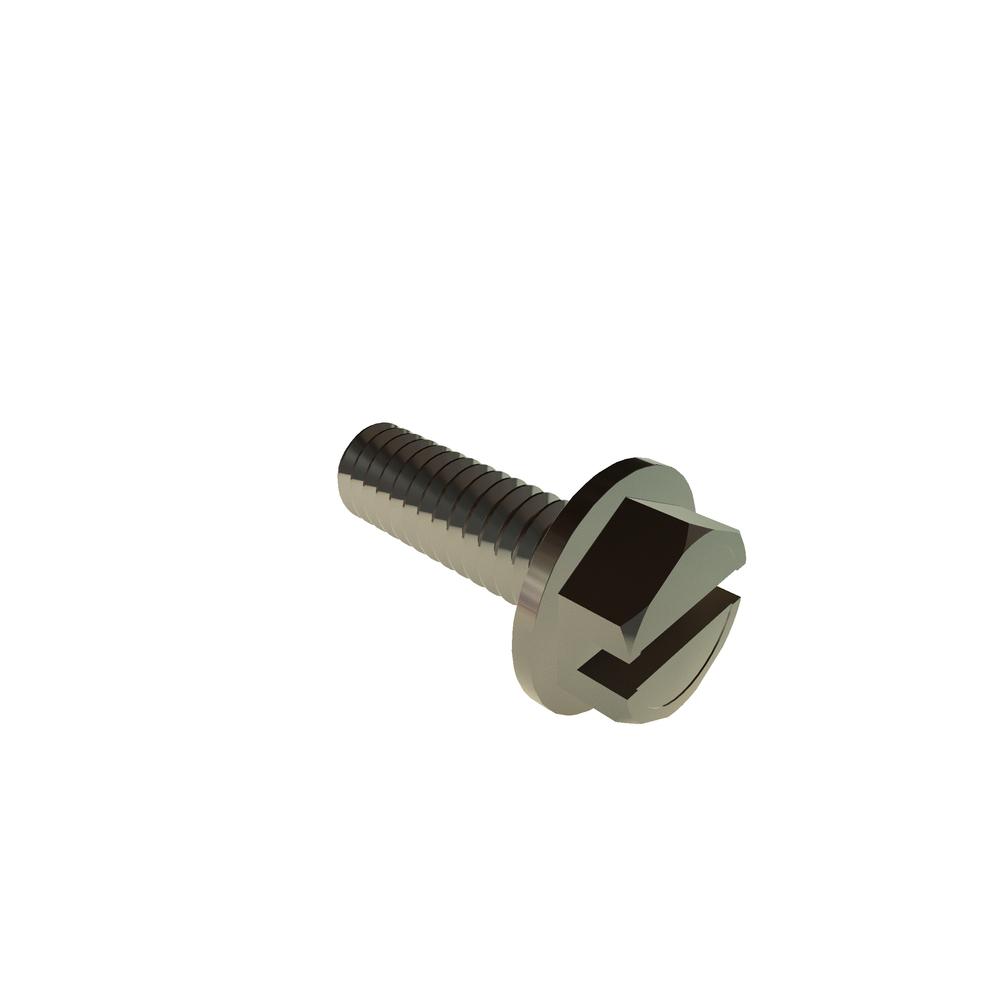

8-32 X 1/2 SLOT HWH SST RoHS
Alternate Codes: 90316A194
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.218 | $0.115 | $0.091 | $0.084 | $0.070 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | Aug-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.052in |
| Slot Depth (Max.) | 0.074in |
| Slot Width (Min.) | 0.045in |
| Slot Width (Max.) | 0.054in |
| Thickness (Min.) | 0.019in |
| Brand | VARIED |
| Type | Hex Washer Head |
| Additional Industry Cross Reference | 90316A194 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Max.) | 0.110in |
| Head Height (Min.) | 0.096in |
| Width Across Flat (Max.) | 0.250in |
| Width Across Flat (Min.) | 0.244in |
| Thickness (Max.) | 0.031in |
| Washer Diameter (Max.) | 0.348in |
| Washer Diameter (Min.) | 0.322in |
