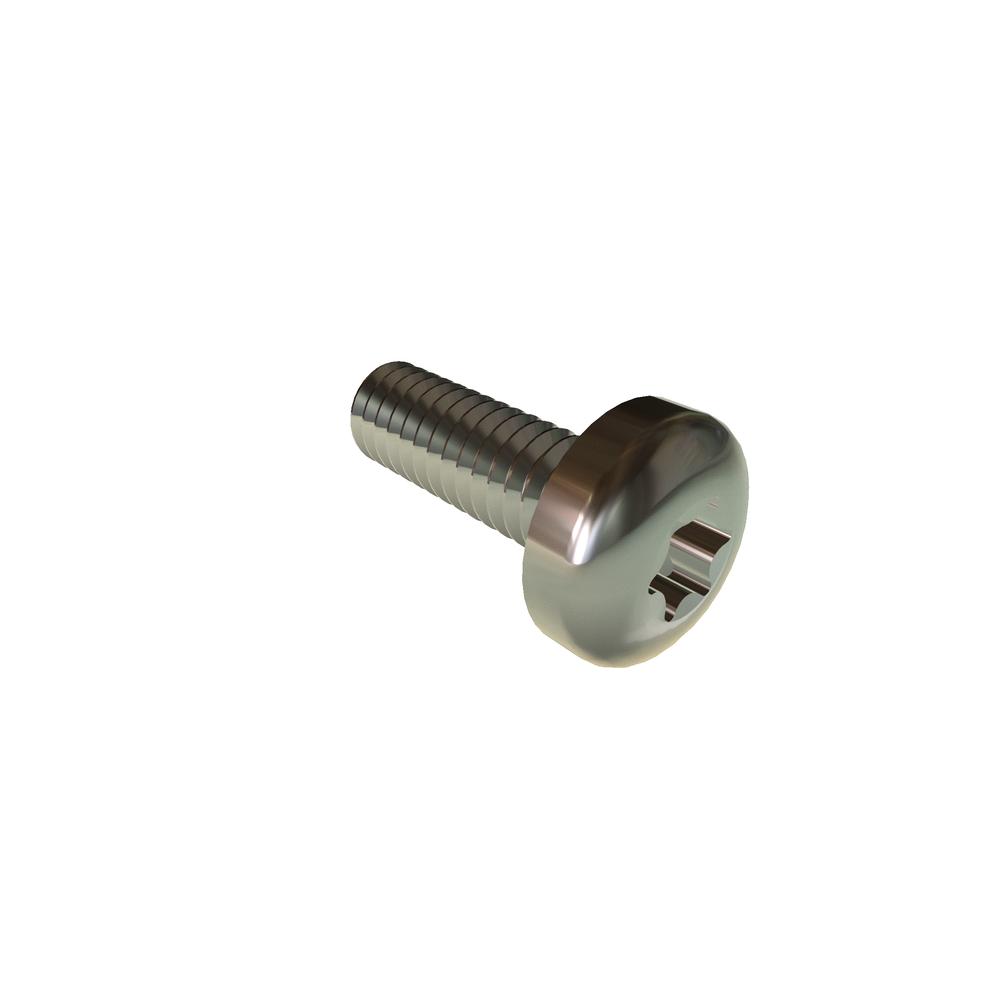

8C50XPMS
8-32 X 1/2 TORX PAN SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Torx |
| Drive Size | T20 |
| Recess Diameter | 0.151in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.070in |
| Brand | VARIED |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
