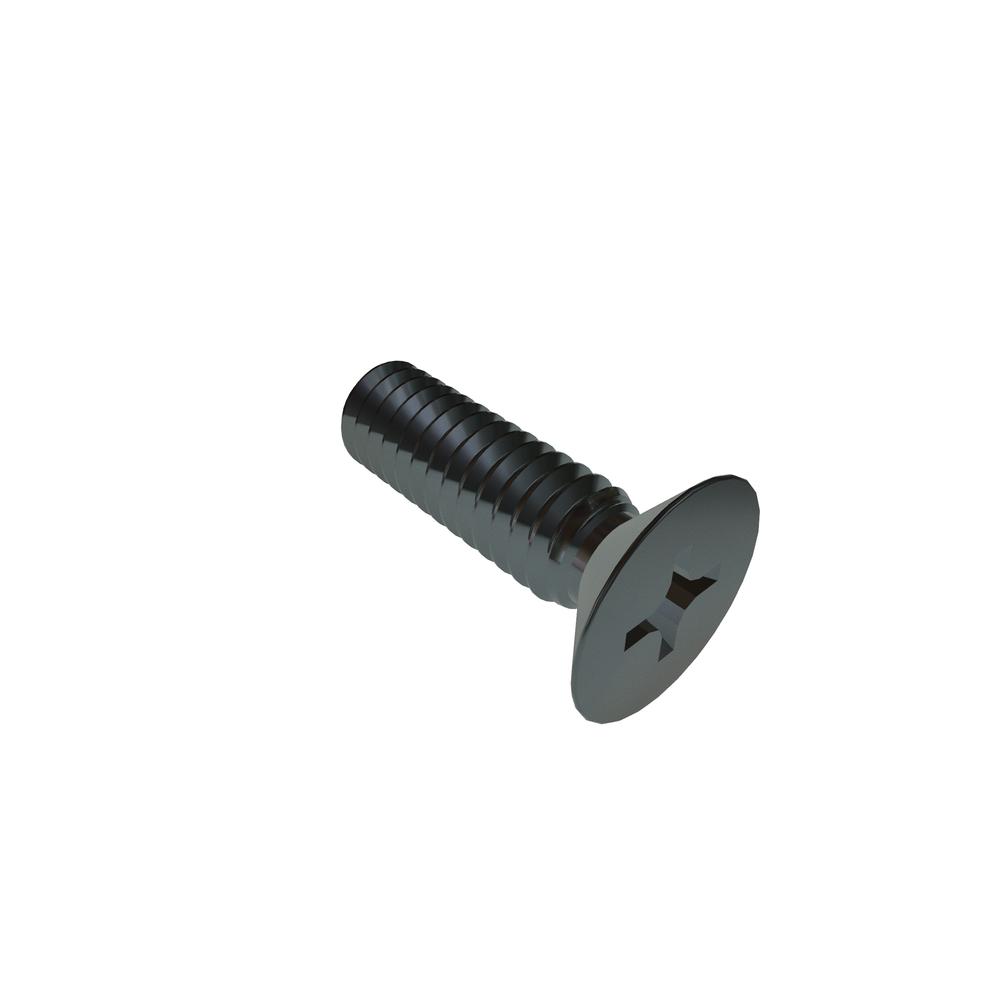

8C56PFHZZ/P-NONROHS
8-32 X 9/16 PHIL FLAT 100 DEG PATCH STL
Alternate Codes: 8C56PFHZZ/P
ZNC Non-RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.863 | $0.549 | $0.504 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat 100 Degree |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.162in |
| Head Height | 0.072in |
| Recess Depth (Min.) | 0.067in |
| Recess Depth (Max.) | 0.090in |
| Brand | VARIED |
| Length | 9/16in |
| RoHS | Non Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.282in |
