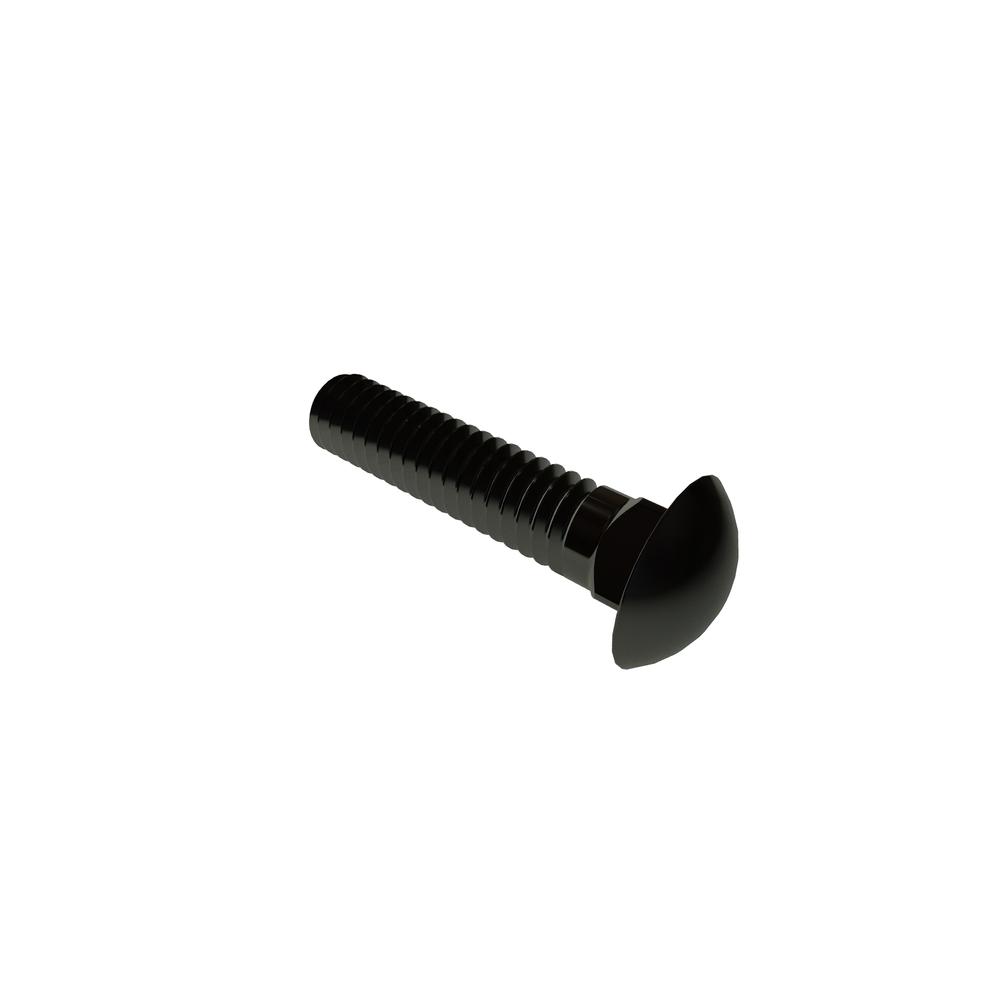

8C75CARZR
8-32 X 3/4 CARRIAGE BOLT STL ZN RoHS
Alternate Codes: N/A
8-32 X 3/4 CARRIAGE BOLT Steel Zinc plate RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.418 | $0.220 | $0.174 | $0.161 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Body Diameter (Min.) | 0.140in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.078in |
| Square Depth (Max.) | 0.108in |
| Square Width (Min.) | 0.155in |
| Square Width (Max.) | 0.169in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.173in |
| Head Diameter (Max.) | 0.328in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.102in |
| Head Height (Min.) | 0.083in |
| Thread Length | 0.750in |
| Total Length | 0.75in |
