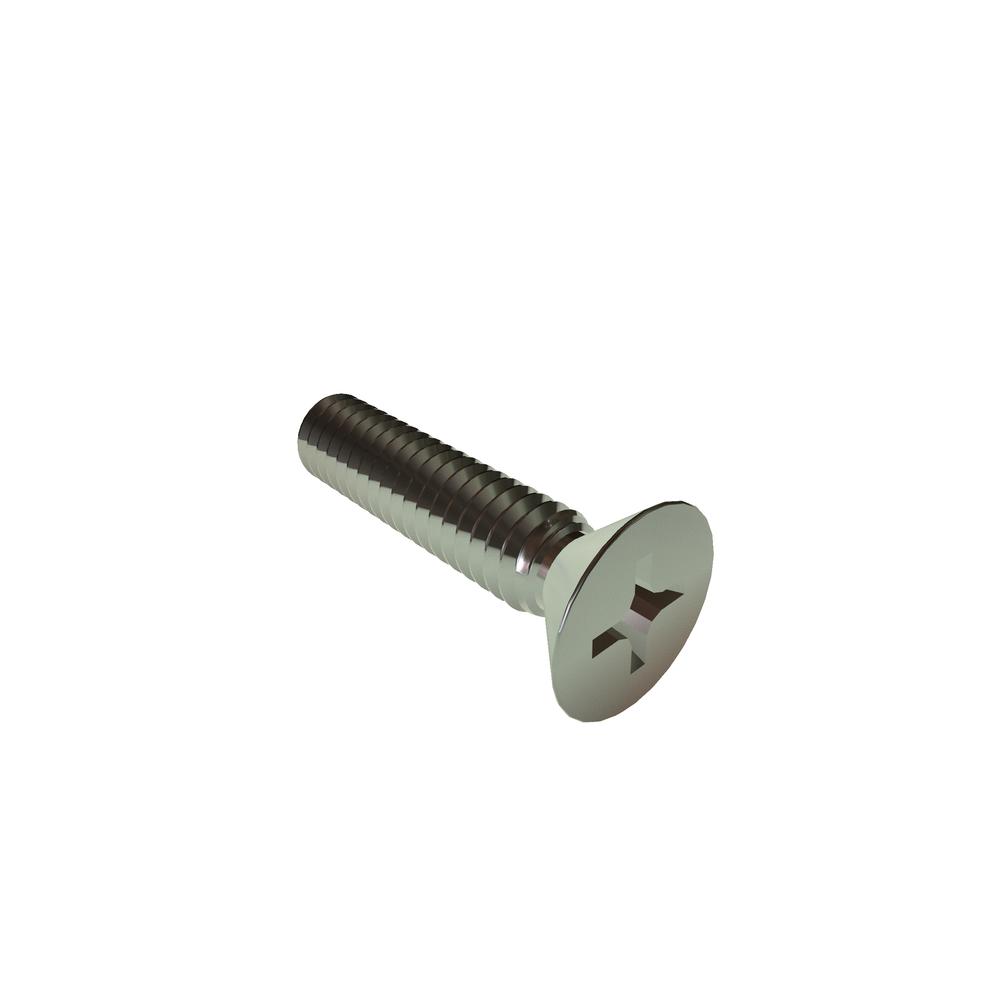

8-32 X 3/4 PHIL FLAT SST RoHS
8C75PFMS
| Item Id | 8C75PFMS |
| Description | 8-32 X 3/4 PHIL FLAT SST RoHS |
| Alternate Codes | 005276, 475-0016, 915-12009-00, MS51959-47 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A197 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Head Height | 0.100in |
| Head Type | Flat |
| Length | 0.75in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.164in |
| Recess Depth (Max.) | 0.110in |
| Recess Depth (Min.) | 0.087in |
| Recess Diameter | 0.182in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
