8C75PPLS

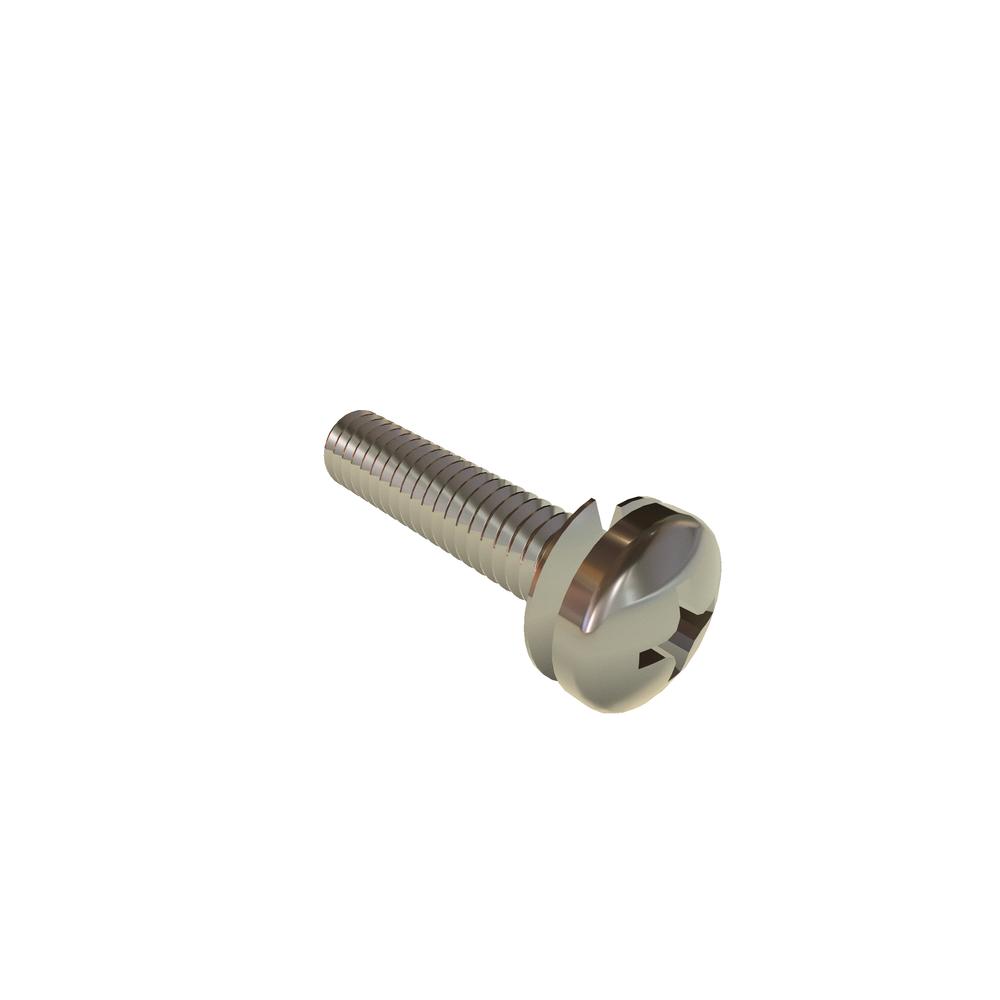

8-32 X 3/4 PH PN SPLT LK SEMS SS
Alternate Codes: 96909A497
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.078in |
| Lock Washer Outside Diameter (Min.) | 0.305in |
| Lock Washer Outside Diameter (Max.) | 0.319in |
| Washer Type | Split Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96909A497 |
| Length | 3/4in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.031in |
| Lock Washer Inside Diameter (Min.) | 0.149in |
| Lock Washer Inside Diameter (Max.) | 0.155in |
