Image for reference purposes only. Actual product may vary.
8C75PPQZR

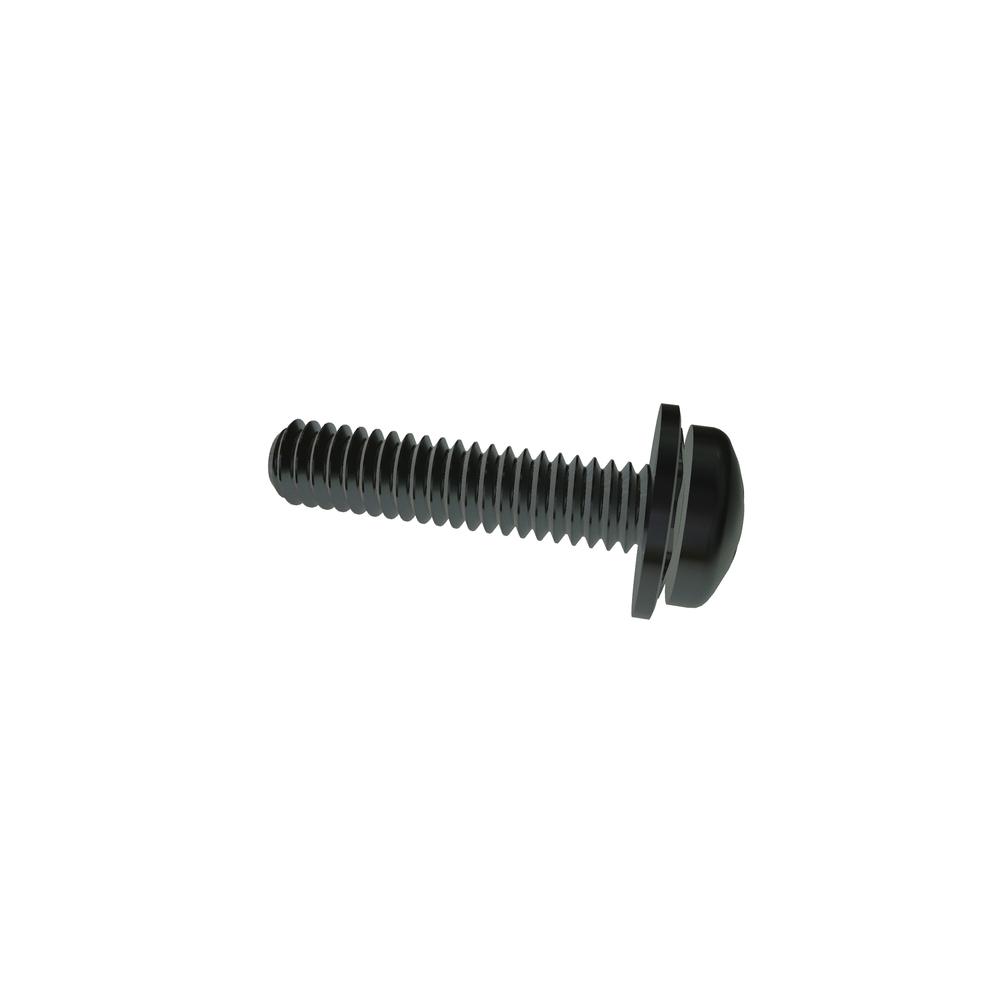

8-32 X 3/4 PH PAN SQ CONE SEMS STL ZN
Alternate Codes: N/A
CR3
Pricing per Unit
| 1-99 pcs |
|---|
| $0.312 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 3/4in |
| Thread Size | 8-32 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 0.175in |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Lock Washer Height (Min.) | 0.050in |
| Lock Washer Height (Max.) | 0.073in |
| Lock Washer Outside Diameter (Min.) | 0.370in |
| Lock Washer Outside Diameter (Max.) | 0.383in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Head Radius (Min.) | 0.015in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.030in |
