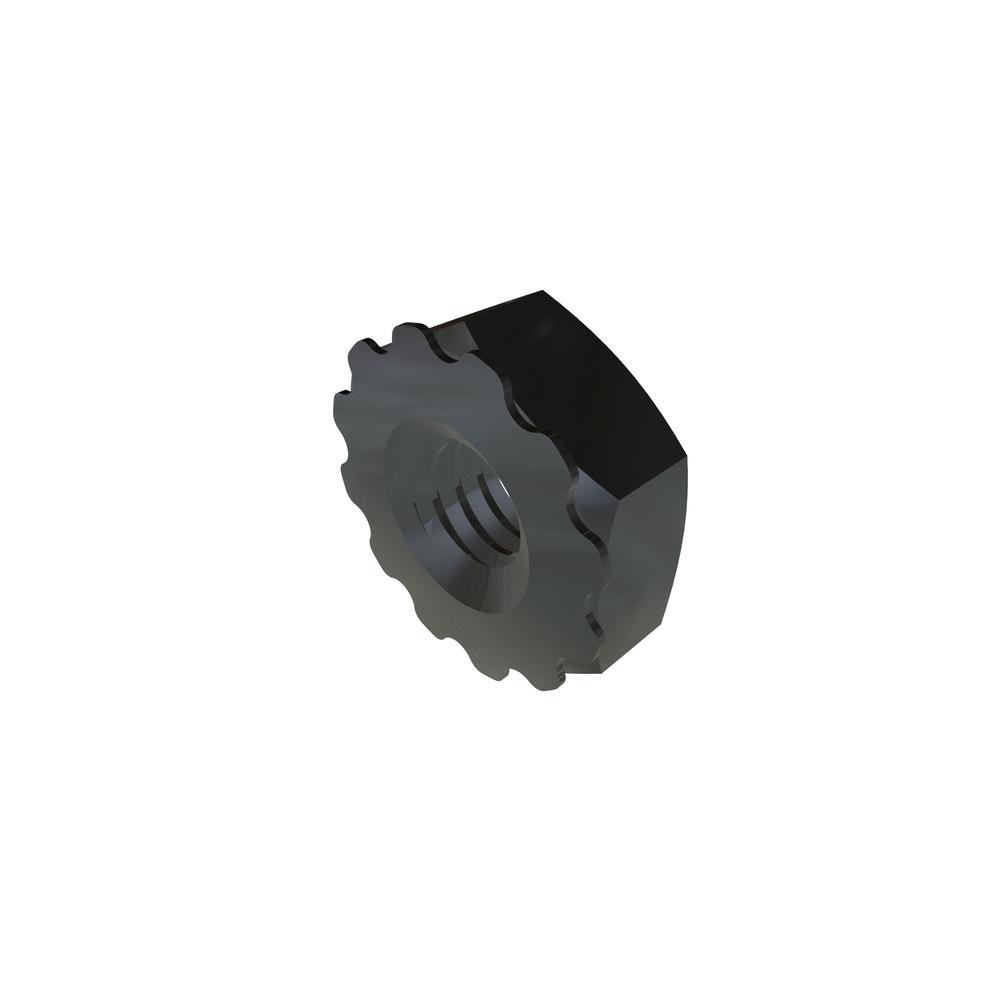

8-32 KEP NUT STL ZN CR3
8CKNTZR
| Item Id | 8CKNTZR |
| Description | 8-32 KEP NUT STL ZN RoHS |
| Alternate Codes | 00303, 01431-1, 031-240210, 046736, 047670, 0723, 104-014418-002, 130-010, 13164, 1901-0090, 201-0106-01, 205-0106-01, 238-1204-00, 239-0002-00, 32-635, 500-0004, 50544-03, 7071-1832-00, 710006, 7511-0832, 76108200, 778-00005, 7857-0800, 82-0051-00, 8CKNTZt, 90128, 99-20880-1KP, HN308, RSP-H0605 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90675A009 |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Head Thickness (Max.) | 0.130in |
| Head Thickness (Min.) | 0.117in |
| Material | Steel |
| Nominal Diameter | 0.164in |
| RoHS | Compliant |
| Thickness (Max.) | 0.021in |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Washer Diameter (Max.) | 0.381in |
| Washer Diameter (Min.) | 0.370in |
| Width Across Flat (Max.) | 0.344in |
| Width Across Flat (Min.) | 0.332in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
