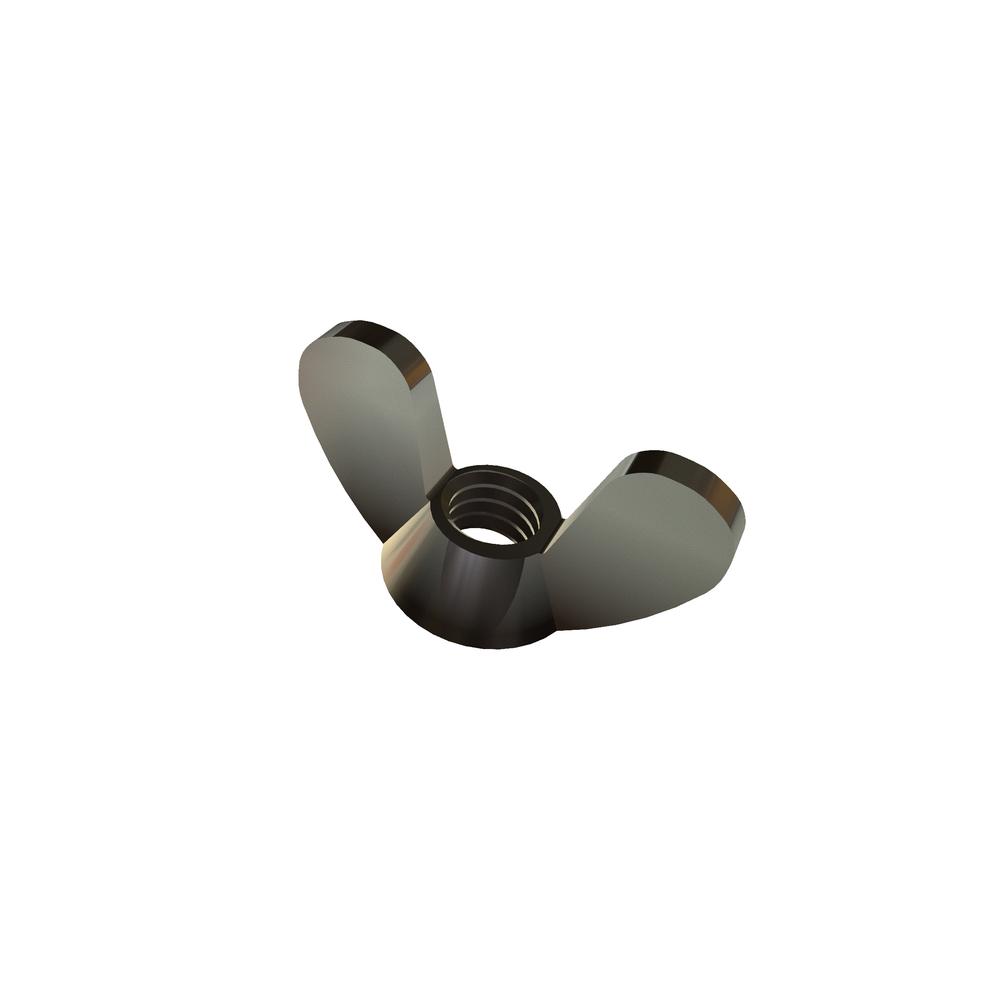

Image for reference purposes only. Actual product may vary.
8CWNTS
8-32 WING NUT SST RoHS
Alternate Codes: 2826-3140, 8CWNFS, 92001A291
8-32 Wing Nut Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.697 | $0.383 | $0.319 | $0.273 | $0.226 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.164in |
| Thread Size | 8-32 |
| Between Wing (Min.) | 0.220in |
| Thread Type | Unified Coarse Thread (UNC) |
| Type | Wing Nut |
| Material | Stainless Steel |
| Boss Height (Max.) | 0.180in |
| Between Wing (Max.) | 0.270in |
| Units | Inch |
| Boss Height (Min.) | 0.140in |
| Boss Diameter (Min.) | 0.390in |
| Boss Diameter (Max.) | 0.430in |
| Wing Thickness (Min.) | 0.100in |
| Wing Thickness (Max.) | 0.140in |
| Wing Height (Min.) | 0.340in |
| Wing Height (Max.) | 0.470in |
| Wing Spread (Min.) | 0.780in |
| Wing Spread (Max.) | 0.910in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92001A291 |
| RoHS | Compliant |
