8CWNTZR

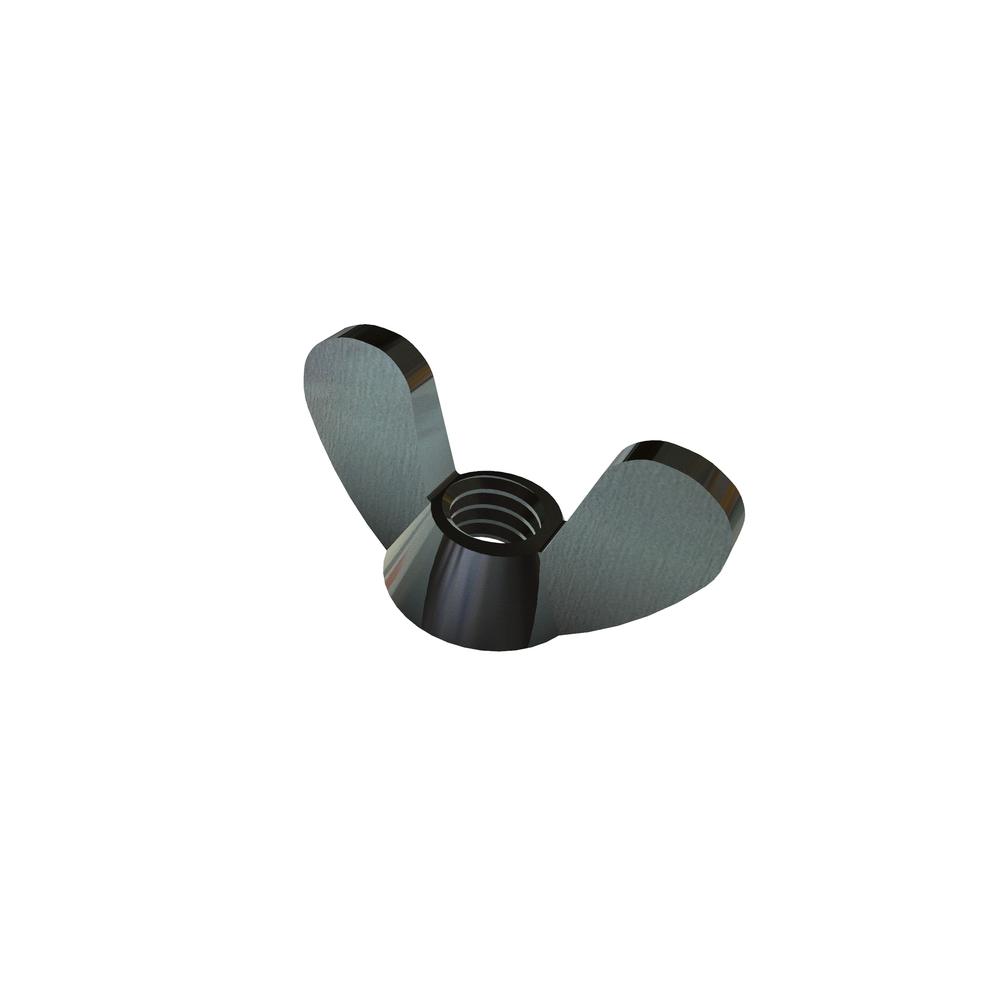

8-32 WING NUT STL ZN CR3
Alternate Codes: 90866A009
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|
| $0.220 | $0.132 | $0.110 | $0.090 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Boss Height (Min.) | 0.140in |
| Boss Diameter (Min.) | 0.390in |
| Boss Diameter (Max.) | 0.430in |
| Between Wing (Min.) | 0.220in |
| Wing Thickness (Min.) | 0.100in |
| Wing Thickness (Max.) | 0.140in |
| Wing Height (Min.) | 0.340in |
| Wing Height (Max.) | 0.470in |
| Wing Spread (Min.) | 0.780in |
| Wing Spread (Max.) | 0.910in |
| Boss Height (Max.) | 0.180in |
| Between Wing (Max.) | 0.270in |
| Brand | VARIED |
| Type | Wing Nut |
| Additional Industry Cross Reference | 90866A009 |
| RoHS | Compliant |
