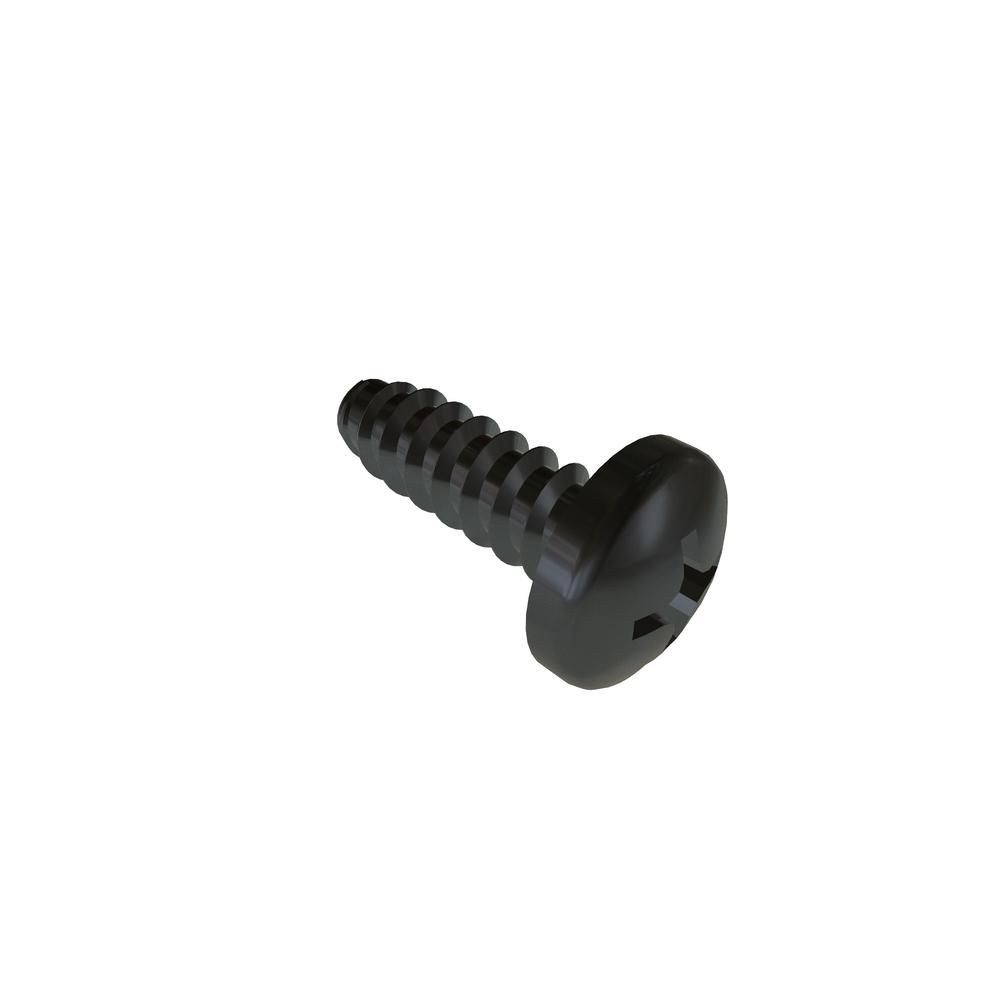

Image for reference purposes only. Actual product may vary.
8N50PPBZR
8 X 1/2 PHIL PAN T-B STL ZN CR3
Alternate Codes: 90056A194, HS340
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs |
|---|---|---|---|---|
| $0.064 | $0.039 | $0.028 | $0.022 | $0.020 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.164in |
| Thread Size | 8-18 |
| Finish | Zinc Cr3 |
| Recess Width | 0.030in |
| Recess Diameter | 0.176in |
| Recess Depth | 0.095in |
| Drive Type | Phillips |
| Head Type | Pan Head |
| Material | Steel |
| Units | Inch |
| Drive Size | 2 |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90056A194 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.4 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
