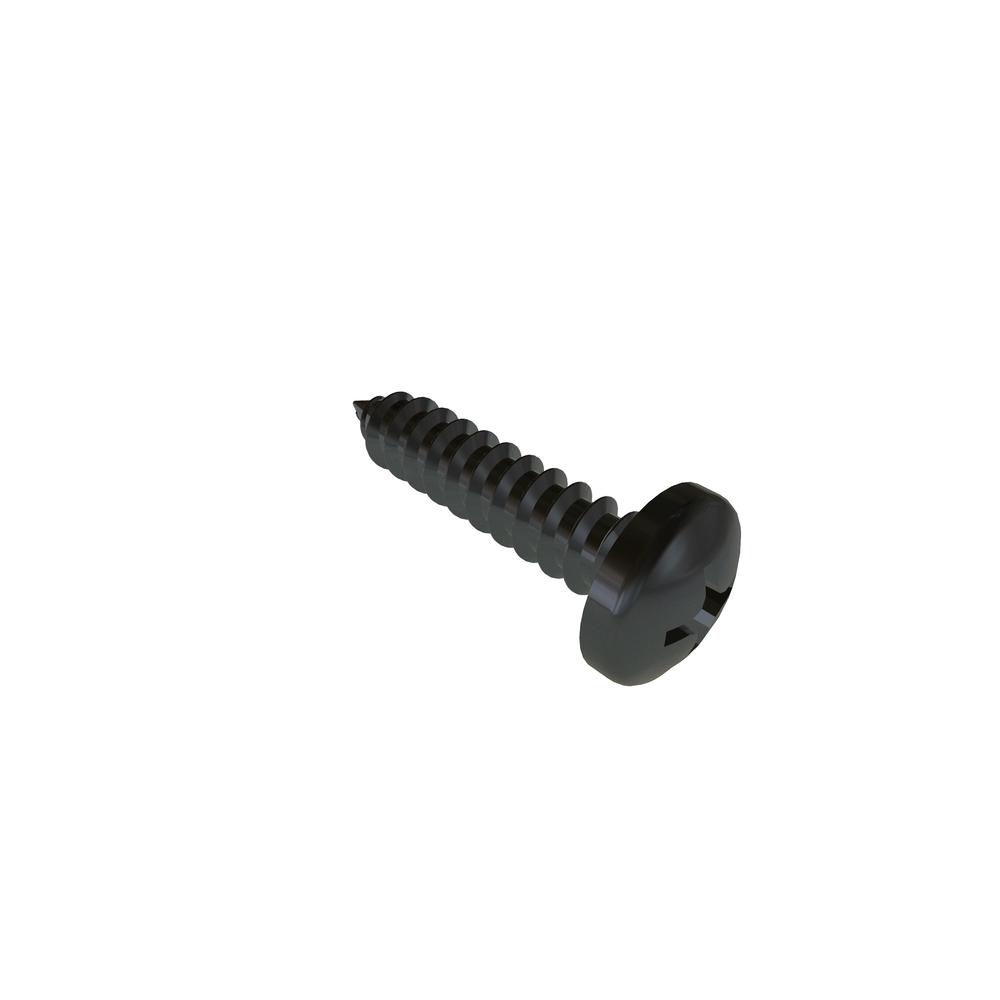

Image for reference purposes only. Actual product may vary.
8N75PPAZR
8 X 3/4 PHIL PAN T-AB STL ZN CR3
Alternate Codes: 100-03-501, 232-0002-02, 90190A197
Pricing per Unit
| 1-499 pcs |
|---|
| $0.051 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Brand | VARIED |
| Head Diameter (Min.) | 0.306in |
| Head Diameter (Max.) | 0.322in |
| Thread Size | 8-18 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.176in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
| Head Height (Max.) | 0.115in |
| Nominal Diameter | 0.164in |
| Head Radius (Min.) | 0.015in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Min.) | 0.105in |
| Additional Industry Cross Reference | 90190A197 |
