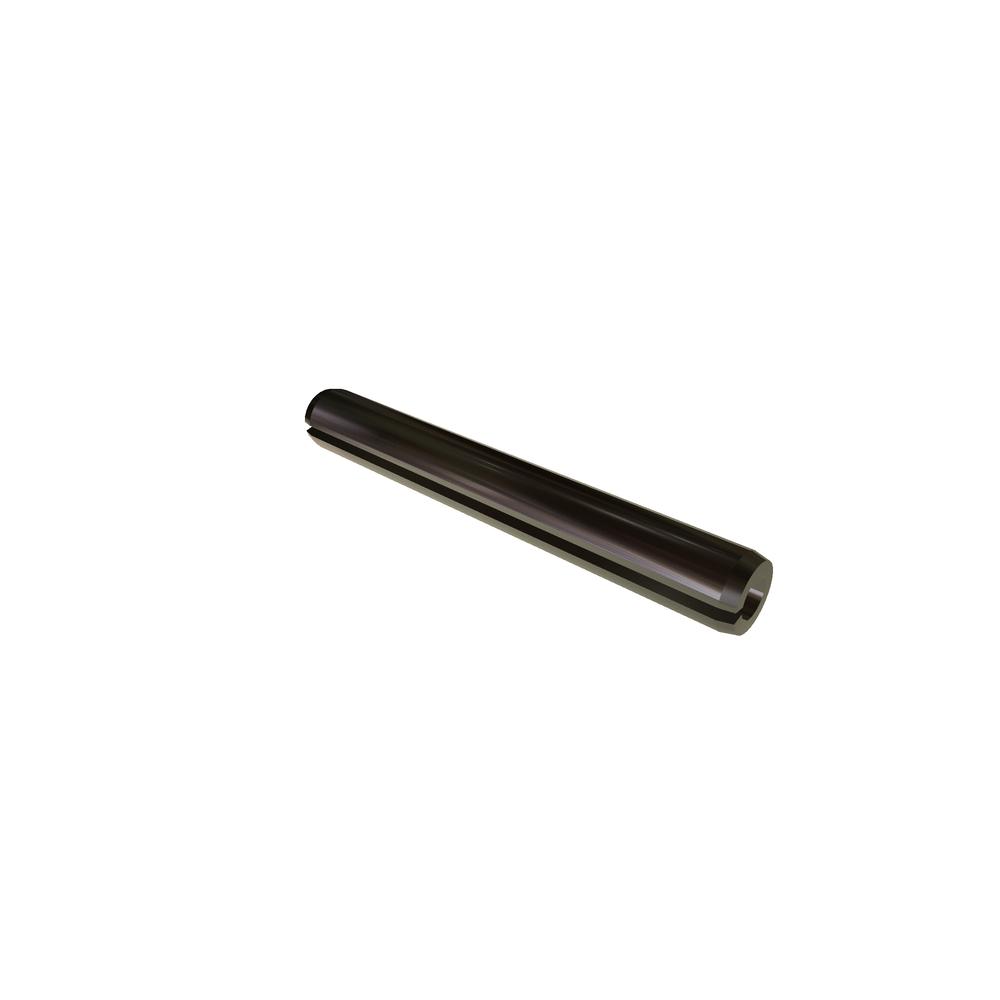

3/32 X 1/4 ROLL PIN SST RoHS
9R25ROLS
| Item Id | 9R25ROLS |
| Description | 3/32 X 1/4 ROLL PIN SST RoHS |
| Alternate Codes | 032280, 1459022621, 29-0095-01, 50824, 92373A139 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92373A139 |
| Brand | VARIED |
| Chamfer Diameter | 0.091in |
| Chamfer Length (Max.) | 0.038in |
| Chamfer Length (Min.) | 0.008in |
| Finish | Plain |
| Material | 420 Stainless Steel |
| Nominal Diameter | 3/32in |
| Pin Diameter (Max.) | 0.103in |
| Pin Diameter (Min.) | 0.099in |
| Recommended Hole Size (Max.) | 0.097in |
| Recommended Hole Size (Min.) | 0.094in |
| RoHS | Compliant |
| Units | Inch |
| Wall Thickness | 0.022in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
