9R37MDP

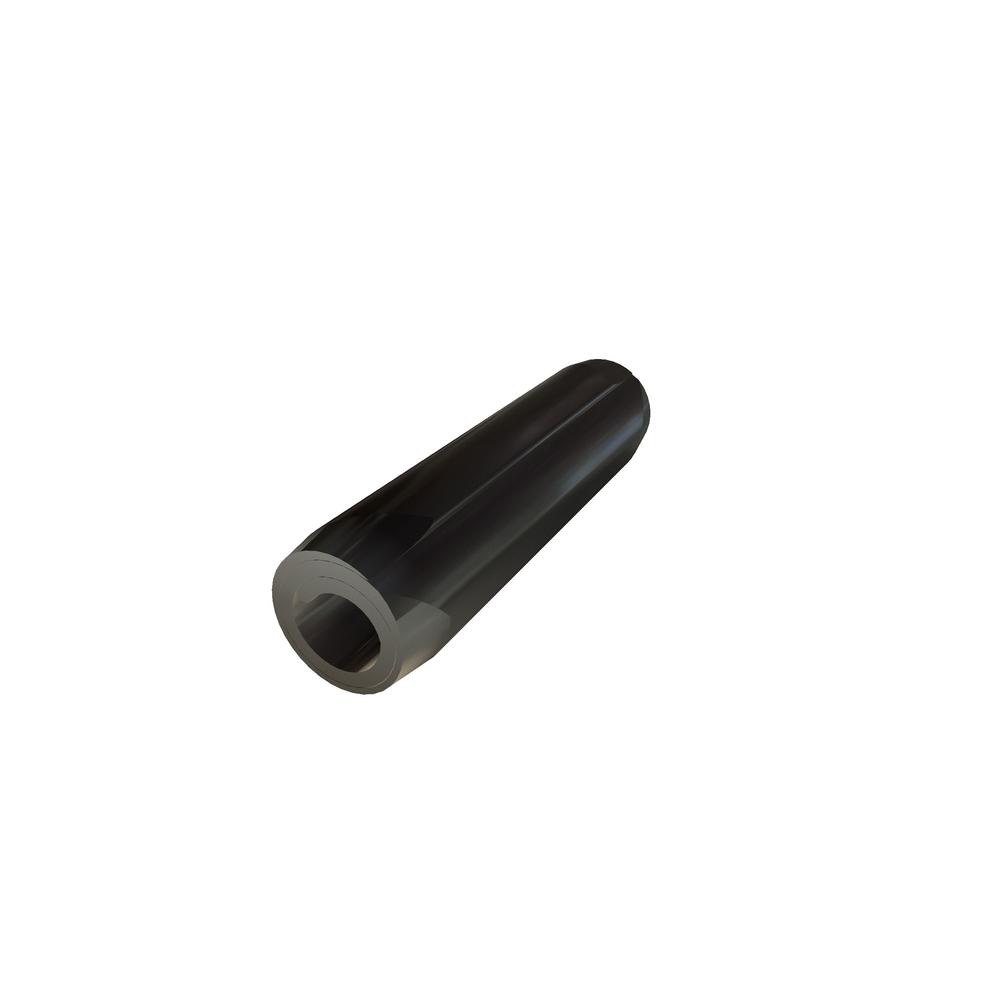

3/32 X 3/8 SPIROL PIN MED. DUTY 302 SST
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.508 | $0.267 | $0.212 | $0.196 | $0.164 | Larger Quantities |
In Stock
| Material | 302 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Nominal Diameter | 54 |
| OD (Max.) | 0.105in |
| OD (Min.) | 0.099in |
| Recommended Hole Size (Min.) | 0.094in |
| Recommended Hole Size (Max.) | 0.097in |
| Chamfer Diameter | 0.091in |
| Brand | VARIED |
| Type | Mediumduty |
| Outside Diameter (Max.) | 0.105in |
| Chamfer Length | 0.038in |
