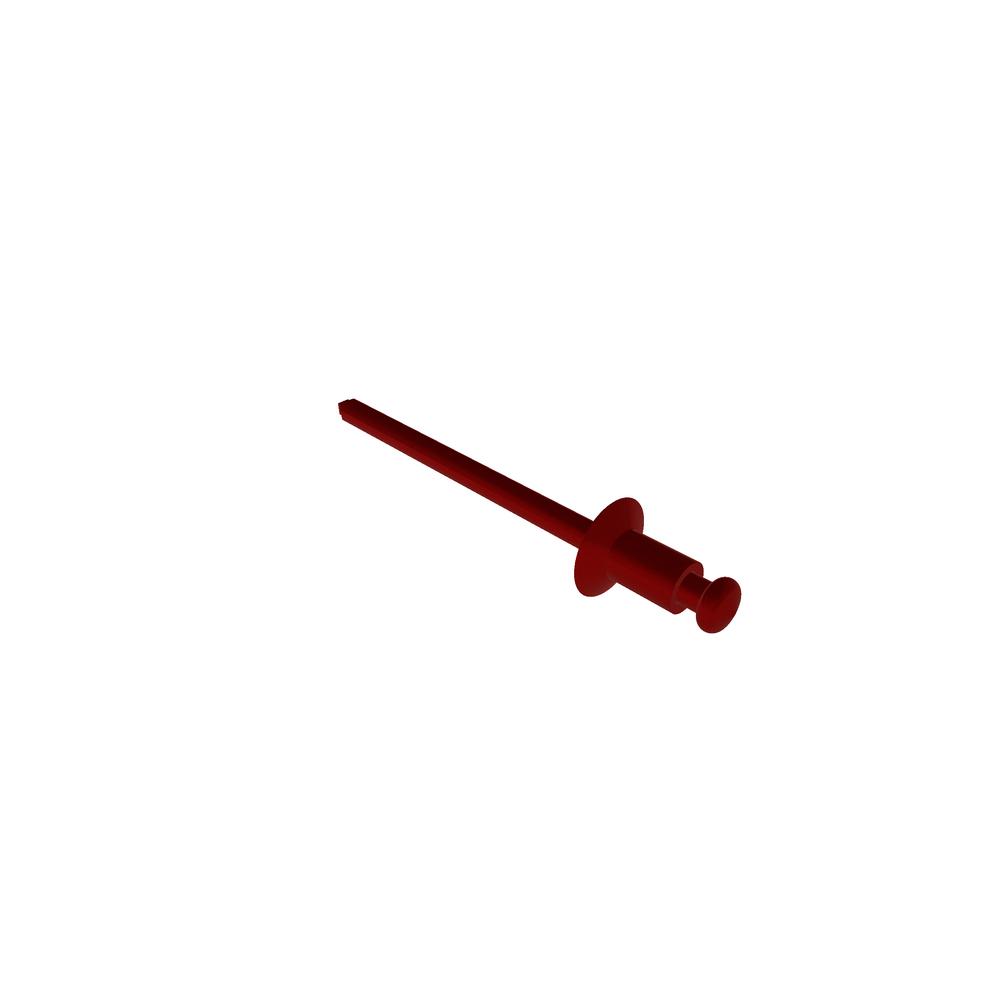

AD42ABS
POP RIVET 1/8 DIA X .063-.125 GRIP
Alternate Codes: 100-00-571, 26502, 4-2AAD, 606-0008, 97447A015, A/A42D, AA42, AAP-42, AB4-2A, ABA42, GAMD42A
ALUM RIVET/ALUM MANDREL RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.146 | $0.088 | $0.073 | $0.060 | $0.053 | Larger Quantities |
In Stock
| Finish | Plain |
| Units | Inch |
| Head Type | Domed |
| Body Diameter (Min.) | 0.122in |
| Grip Range | 0.063in to 0.125in |
| Hole Size | 0.129in to 0.133in |
| Drill Size | #30 |
| Flange | 6 |
| Flange Diameter (Min.) | 0.238in |
| Flange Diameter (Max.) | 0.262in |
| Flange Thickness (Min.) | 0.032in |
| Flange Thickness (Max.) | 0.040in |
| Blind Side Protrusion | 0.370in |
| Tensile Strength | 235 lbs |
| Single Shear Strength | 155 lbs |
| Mandrel Diameter | 0.076in |
| Mandrel Finish | Plain |
| Mandrel Material | Aluminum |
| Rivet Body Material | 5052 Aluminum |
| Rivet Style | Open End |
| Brand | HELICOIL/STANLEY |
| Type | Blind Rivet |
| Additional Industry Cross Reference | 97447A015 |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.128in |
