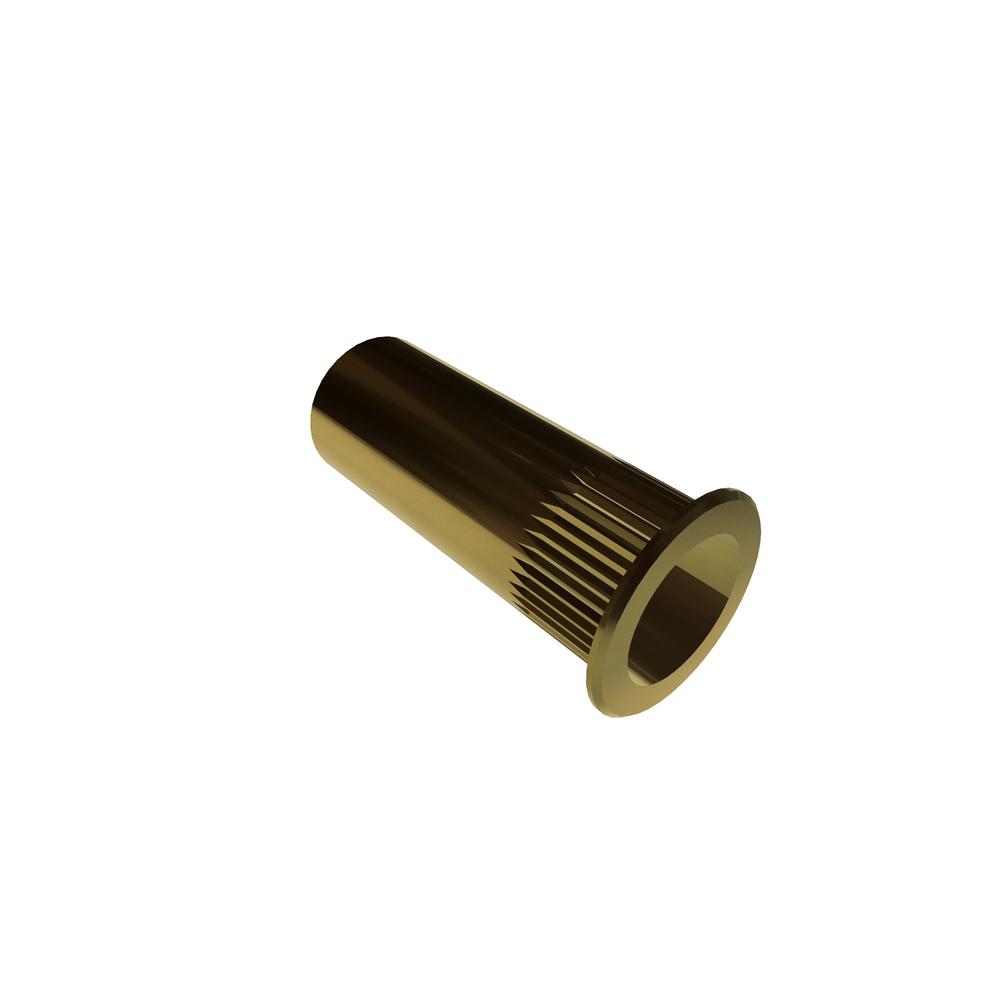

ALS4T-420-260
AVK NUTSERT 1/4-20 X .165-.260 GRIP
Alternate Codes: 95105A147
INSERT 1/4-20 X .165-.260 GRIP
Pricing per Unit
| 1-99 pcs | 100-399 pcs | 400-699 pcs | 700-999 pcs | 1000-1999 pcs | Call For |
|---|---|---|---|---|---|
| $0.848 | $0.617 | $0.463 | $0.386 | $0.309 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | Steel 1010/1008 |
| Finish | Yellow Zinc Trivalent |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Installed Length Ref. (Max.) | 0.380in |
| End Type | Open End |
| Grip Range | 0.165 - 0.260in |
| Usable Length | 0.380in |
| Head Height | 0.03 0.003in |
| Head Diameter | 0.5 0.010in |
| Body Diameter | 0.390in |
| Hole Size | 25/64 +0.006/-0.000 |
| Brand | AVK |
| Additional Industry Cross Reference | 95105A147 |
| RoHS | Compliant |
