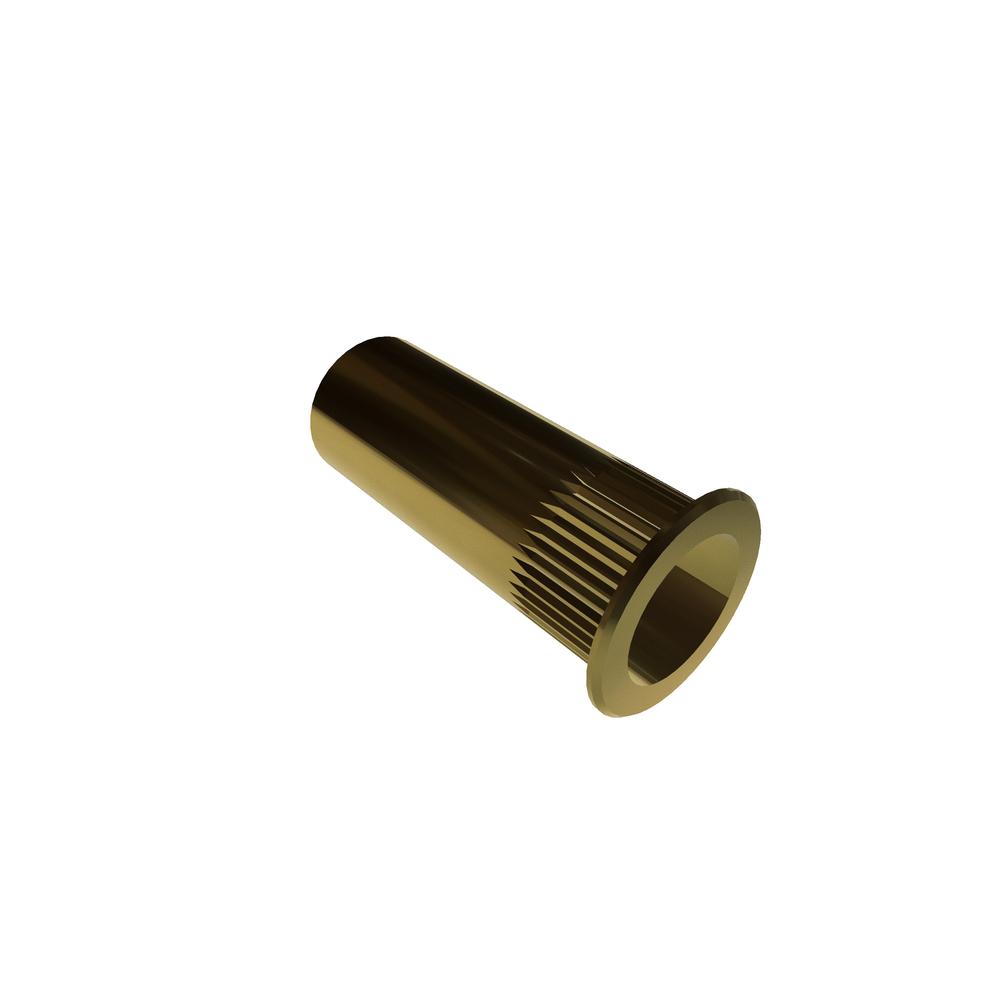

Image for reference purposes only. Actual product may vary.
ALS4T-813-350
AVK NUTSERT 1/2-13 X .200-.350 GRIP STL
Alternate Codes: 95105A170
AVK Insert 1/2-13 X .200-.350 Grip Steel Yellow Zinc Trivalent per ASTM-B-633, FE/ZN .0003 (8u) with clear protective coating RoHS
Pricing per Unit
| 1-99 pcs | 100-399 pcs | 400-699 pcs | 700-999 pcs | 1000-1999 pcs | Call For |
|---|---|---|---|---|---|
| $3.116 | $2.266 | $1.700 | $1.416 | $1.133 | Larger Quantities |
In Stock
Maximum stock already in cart
| Material | Steel 1010/1008 |
| Brand | AVK |
| Thread Size | 1/2-13 |
| Nominal Diameter | 0.500in |
| Head Diameter | 0.865 0.025in |
| Body Diameter | 0.685in |
| Hole Size | 11/16 +0.006/-0.000 |
| Installed Length Ref. (Max.) | 0.850in |
| Usable Length | 0.850in |
| Additional Industry Cross Reference | 95105A170 |
| Finish | Yellow Zinc Trivalent |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| End Type | Open End |
| Grip Range | 0.200 - 0.350in |
| Head Height | 0.047 0.003in |
