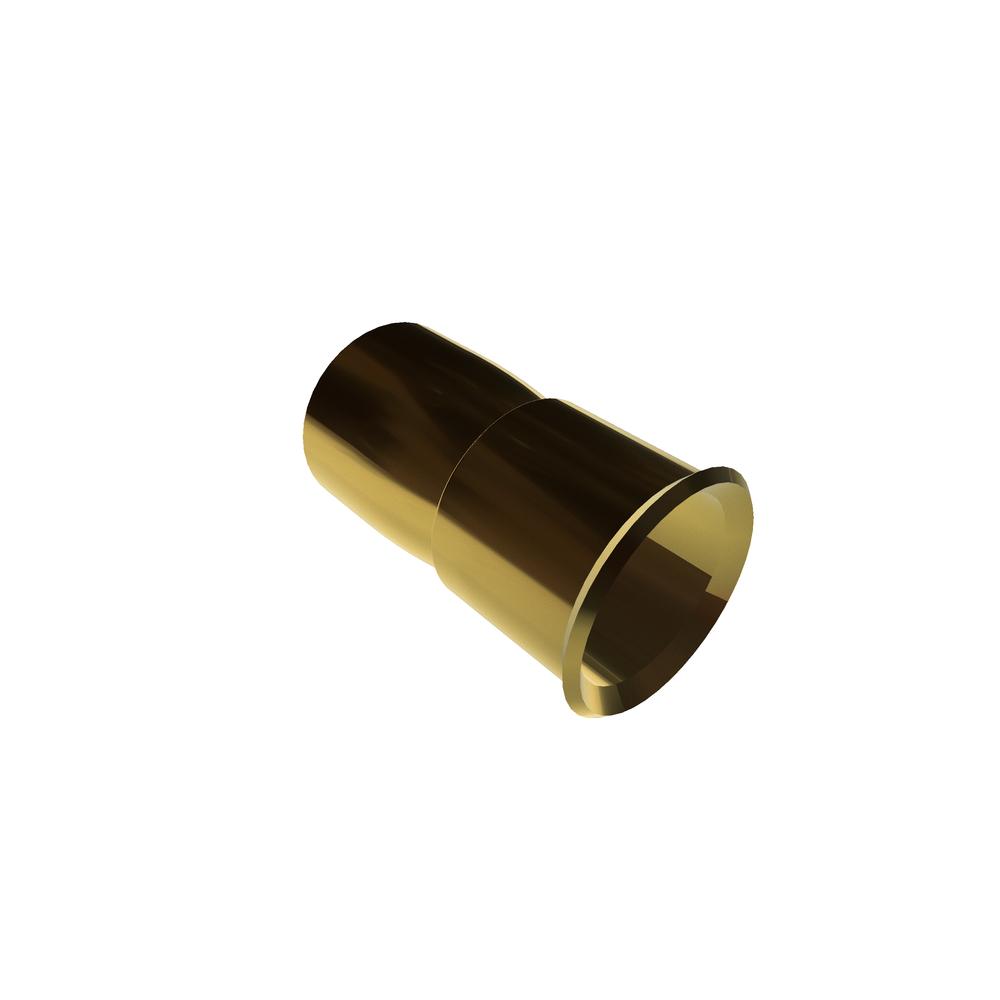

NUTSERT 1/4-20 STL CAD PLT Non-RoHS
ATS2-420-NONROHS
| Item Id | ATS2-420-NONROHS |
| Description | NUTSERT 1/4-20 STL CAD PLT Non-RoHS |
| Alternate Codes | 41736, 9504-08, ATS2-420, BIN-318, LD0633-01 |
| Extended Description | |
| Packaging | EA |
| Body Diameter | 0.375in |
| Brand | AVK |
| End Type | Open End |
| Finish | Cadmium Plated/clear |
| Grip Range | Above 0.030in |
| Head Diameter | 0.4 0.005in |
| Hole Depth Min | 0.540in |
| Installed Length Ref. (Max.) | 0.275in |
| Material | Steel C1010, C1110 Or C1215 |
| Nominal Diameter | 0.250in |
| Thread Size | 1/4-20 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Usable Length | 0.275in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
