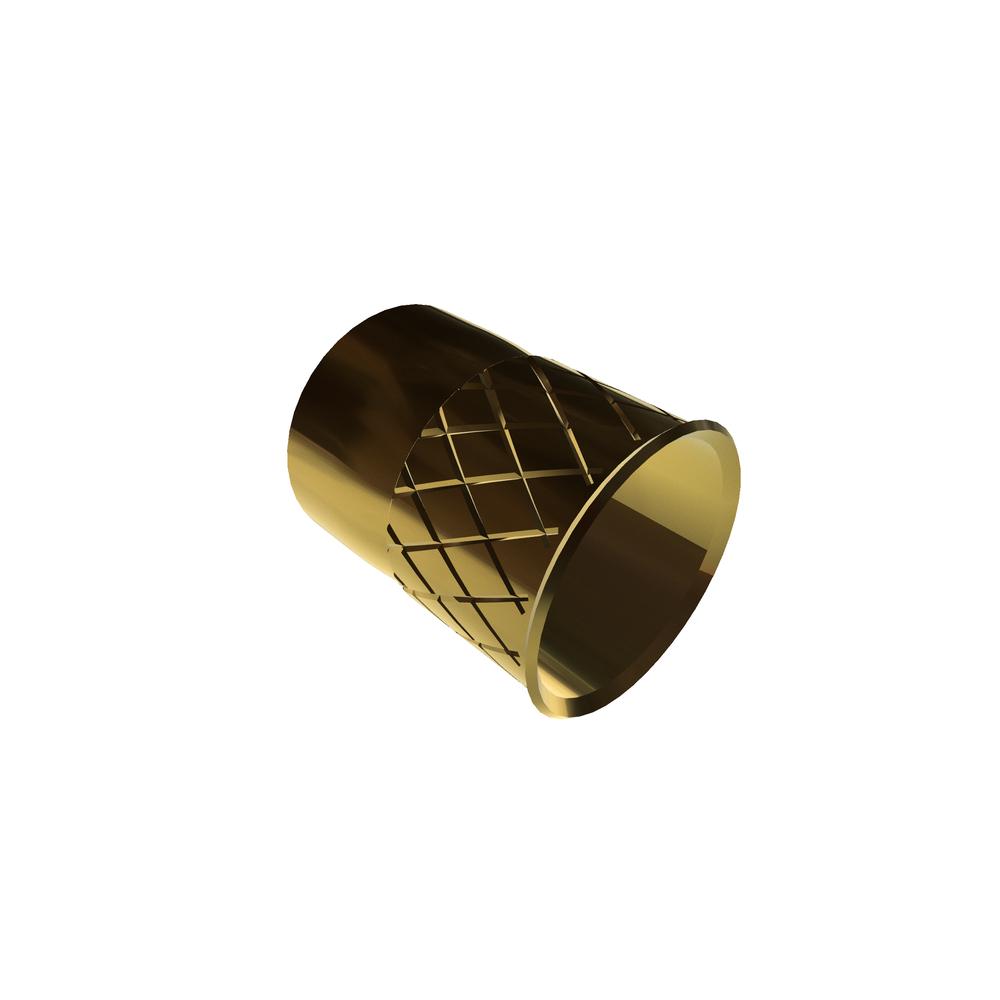

Image for reference purposes only. Actual product may vary.
ATS2-580-NONROHS
AVK NUTSERT M5-0.8 STL CAD PLT
Alternate Codes: ATS2-580
Pricing per Unit
| 1-99 pcs | 100-499 pcs | 500-999 pcs | 1000-1999 pcs | 2000-3999 pcs | Call For |
|---|---|---|---|---|---|
| $0.290 | $0.174 | $0.150 | $0.145 | $0.130 | Larger Quantities |
In Stock
Maximum stock already in cart
| Material | Steel C1010, C1110 Or C1215 |
| Brand | AVK |
| Thread Size | M5x0.8 |
| Nominal Diameter | 5.00 mm |
| Head Diameter | 7.77 0.13 mm |
| Body Diameter | 7.12 mm |
| Hole Depth Min | 10.16 mm |
| Installed Length Ref. (Max.) | 5.21 mm |
| Usable Length | 5.21 mm |
| Finish | Cadmium Plated/clear |
| Units | Metric |
| Thread Type | Metric Coarse |
| End Type | Open End |
| Grip Range | Above 0.76 mm |
