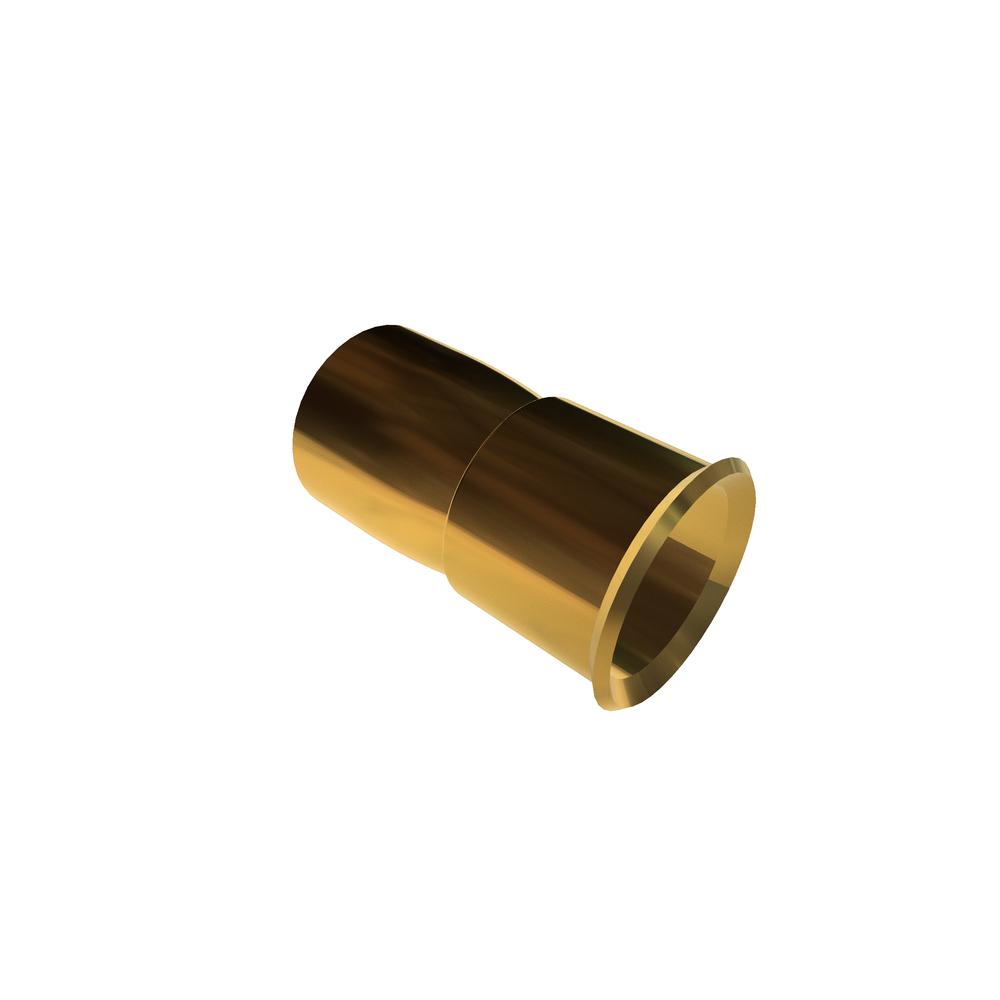

Image for reference purposes only. Actual product may vary.
AWB2-832-NONROHS
AVK NUTSERT 8-32 BR CAD PLT
Alternate Codes: 516582, AWB2-832
Pricing per Unit
| 1-99 pcs | 100-499 pcs | 500-999 pcs |
|---|---|---|
| $0.899 | $0.540 | $0.465 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Material | Brass 360 Or 464 |
| Brand | AVK |
| Thread Size | 8-32 |
| Nominal Diameter | 0.164in |
| Head Diameter | 0.285 0.005in |
| Body Diameter | 0.264in |
| Hole Size | 17/64 +0.005/-0.000 |
| Hole Depth Min | 0.400in |
| Installed Length Ref. (Max.) | 0.205in |
| Usable Length | 0.205in |
| Finish | Cadmium Plated/clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| End Type | Open End |
| Grip Range | Above 0.062in |
