AWS2-420-NONROHS

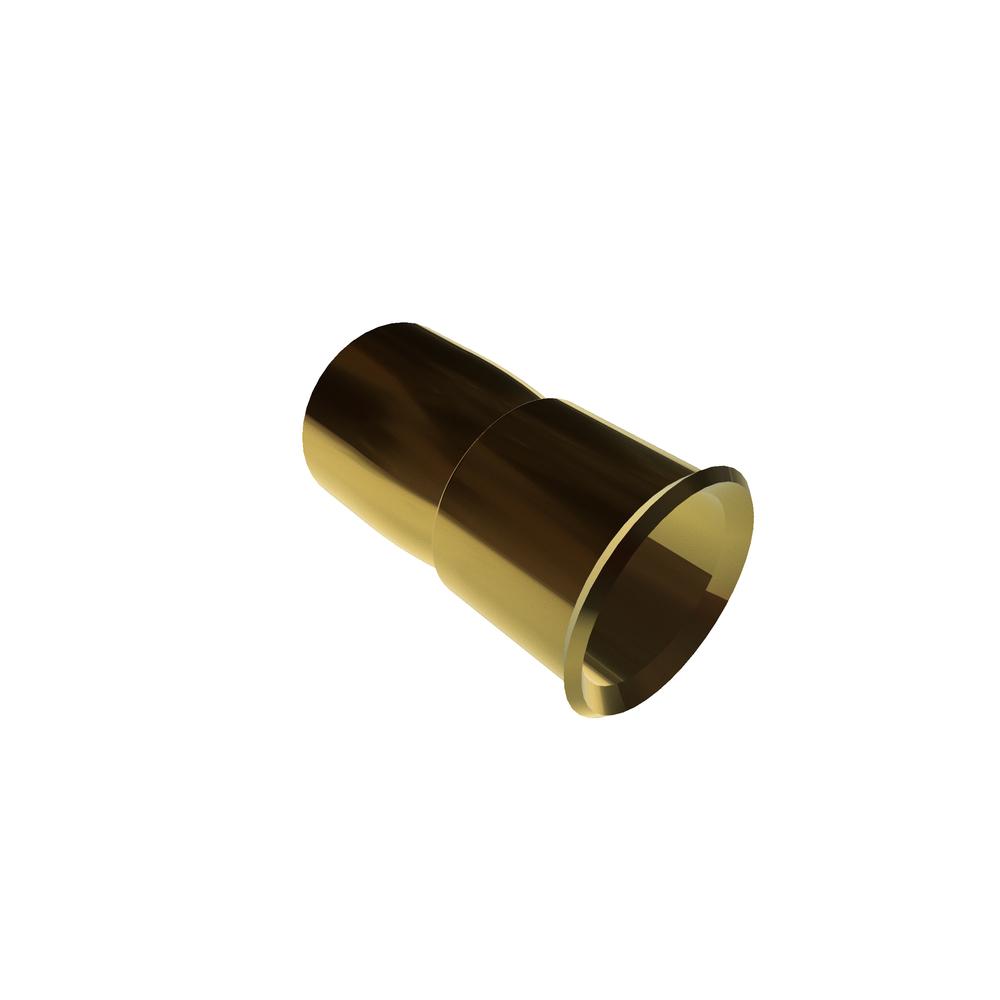

AVK NUTSERT 1/4-20 STL CAD PLT
Alternate Codes: AWS2-420
Pricing per Unit
| 1-99 pcs | 100-499 pcs | 500-999 pcs | 1000-1999 pcs | 2000-3999 pcs |
|---|---|---|---|---|
| $0.604 | $0.362 | $0.312 | $0.302 | $0.270 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Steel C1010, C1110 Or C1215 |
| Finish | Cadmium Plated/clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.250in |
| Installed Length Ref. (Max.) | 0.275in |
| End Type | Open End |
| Grip Range | Above 0.062in |
| Usable Length | 0.275in |
| Head Diameter | 0.415 0.005in |
| Body Diameter | 0.389in |
| Hole Size | 25/64 +0.005/-0.000 |
| Brand | AVK |
| Hole Depth Min | 0.540in |
