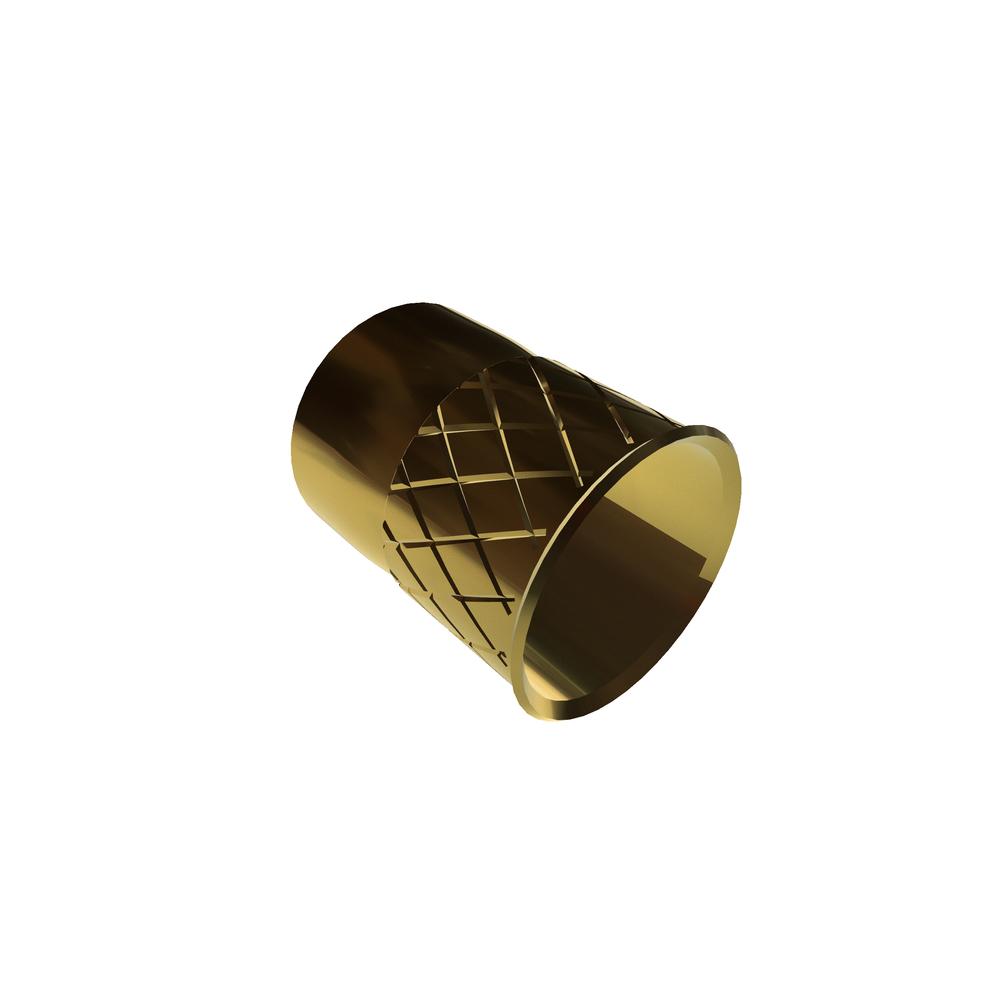

Image for reference purposes only. Actual product may vary.
AWS2-8125-NONROHS
AVK NUTSERT M8-1.25 STL CAD PLT
Alternate Codes: AWS2-8125, AWS2-8125 -NONROHS
Pricing per Unit
| 1-99 pcs | 100-499 pcs | 500-999 pcs |
|---|---|---|
| $0.952 | $0.571 | $0.492 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Material | Steel C1010, C1110 Or C1215 |
| Brand | ASSOCIATED SPRING |
| Thread Size | M8x1.25 |
| Nominal Diameter | 8.00 mm |
| Head Diameter | 13.97 0.13 mm |
| Body Diameter | 13.41 mm |
| Hole Size | 13.49 +0.13/-0.00 |
| Hole Depth Min | 16.26 mm |
| Installed Length Ref. (Max.) | 8.26 mm |
| Usable Length | 8.26 mm |
| Finish | Cadmium Plated/clear |
| Units | Metric |
| Thread Type | Metric Coarse |
| End Type | Open End |
| Grip Range | Above 1.57 mm |
