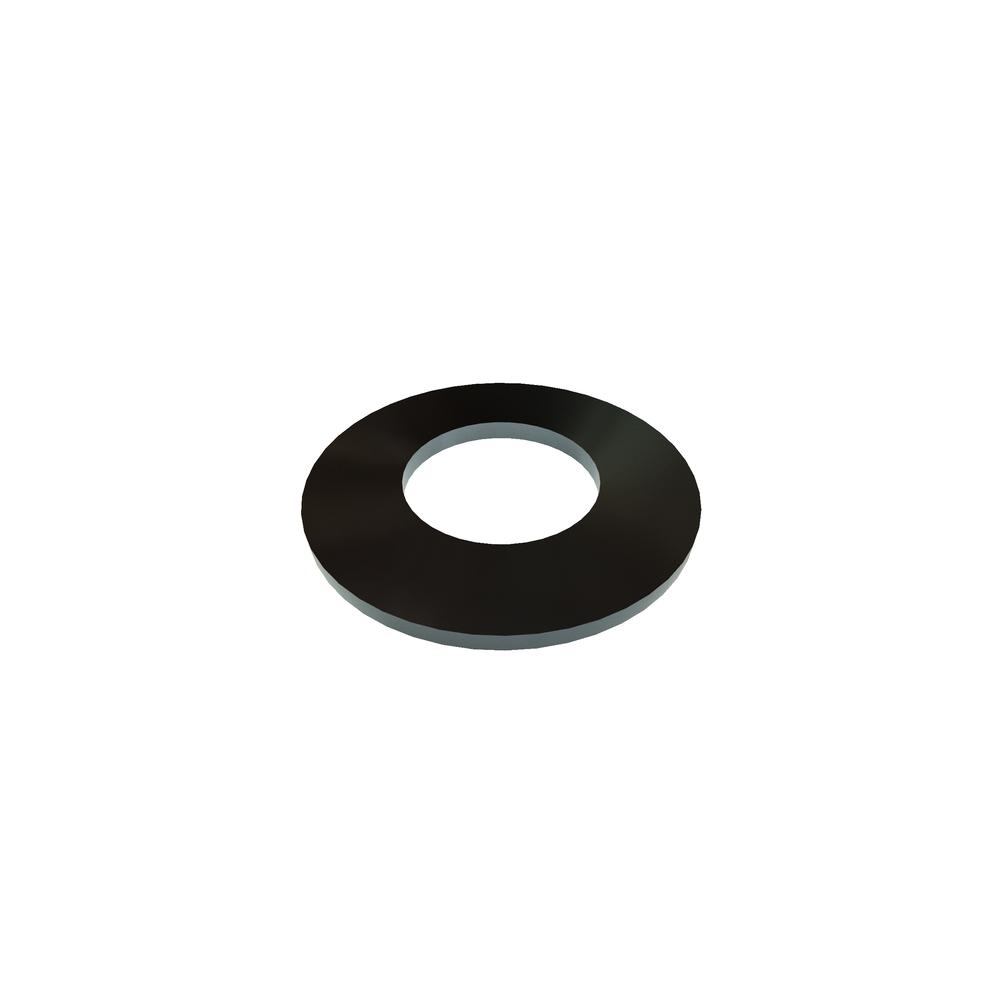

B0187-010
3/32 BELLEVILLE WASHER STL
Alternate Codes: 9712K52
.187 .093 .010
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.754 | $0.480 | $0.441 | $0.406 | $0.343 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In stock
| ID | 0.093in |
| OD | 60 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.015in |
| Thickness (Max.) | 0.010in |
| Units | Inch |
| Hole Size | 0.188in |
| Recommended For Screw Size | 3/32 |
| Load At Flat position (lbs.) | 27.8 lbs |
| Loaded at -H1(P1) (Min.) | 13.0 lbs |
| Loaded at -H1(P1) Max lbs. | 17.6 lbs |
| Loaded Height-H1 | 0.013in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9712K52 |
