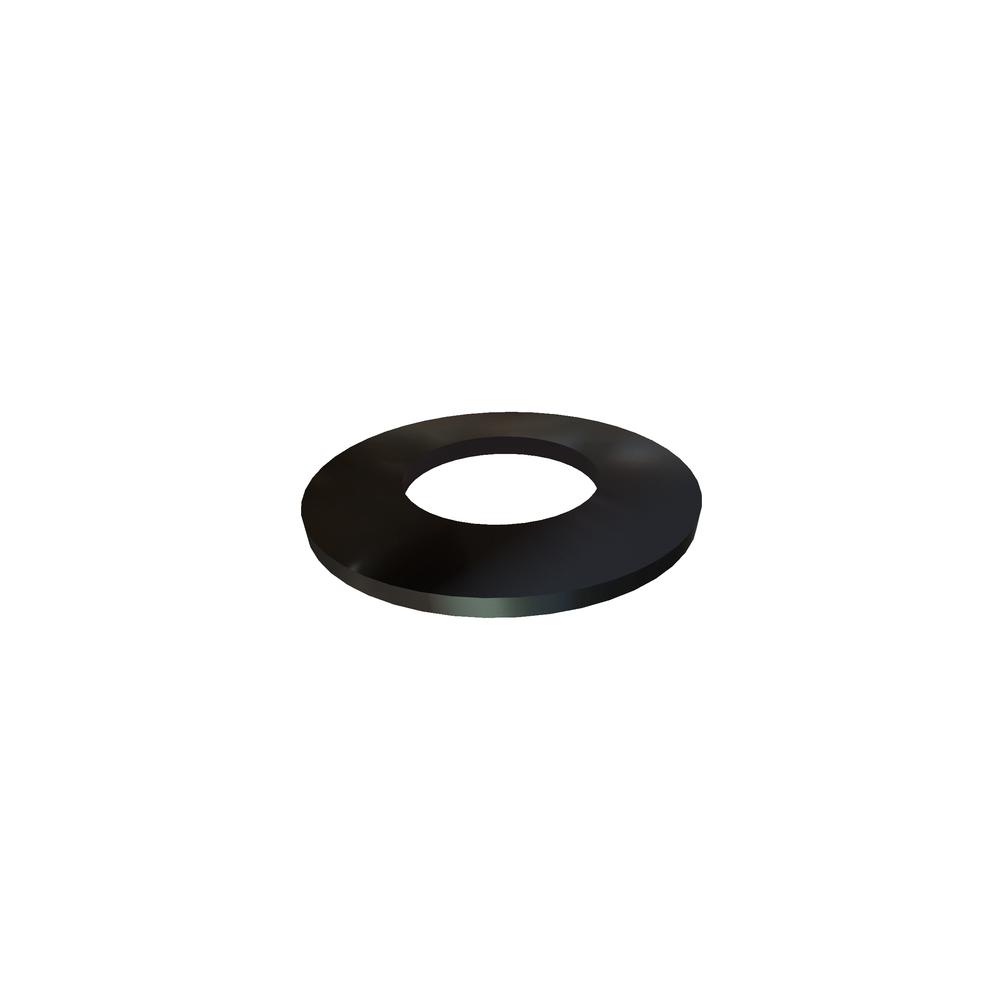

Image for reference purposes only. Actual product may vary.
B0187-010S
3/32 BELLEVILLE WASHER SST
Alternate Codes: 2024-0005, 47-200700-01, 9713K52, D6-20
.187 .093 .010
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $2.236 | $1.720 | $1.398 | $1.243 | $1.118 | Larger Quantities |
In Stock
Maximum stock already in cart
| ID | 0.093in |
| OD | 60 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Stainless Steel |
| Head Height (Max.) | 0.015in |
| Thickness (Max.) | 0.010in |
| Units | Inch |
| Hole Size | 0.188in |
| Recommended For Screw Size | 3/32 |
| Load At Flat position (lbs.) | 27.8 lbs |
| Loaded at -H1(P1) (Min.) | 13.0 lbs |
| Loaded at -H1(P1) Max lbs. | 17.6 lbs |
| Loaded Height-H1 | 0.013in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9713K52 |
