B0250-009

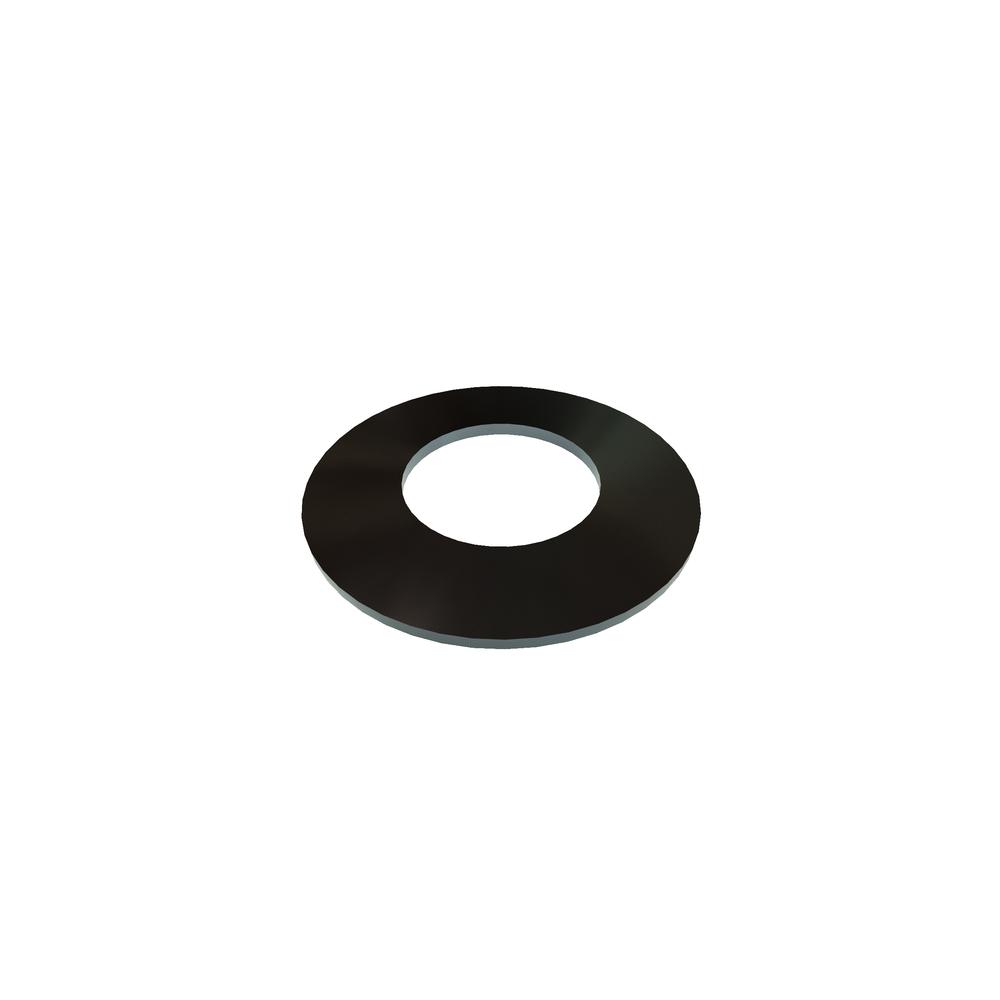

1/8 BELLEVILLE WASHER STL
Alternate Codes: 1622-0013, 9712K53
.250 .125 .0086
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|---|
| $1.612 | $1.240 | $1.008 | $0.896 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.250in |
| Recommended For Screw Size | 1/8 |
| OD | 102 |
| ID | 0.125in |
| Load At Flat position (lbs.) | 16.9 lbs |
| Loaded at -H1(P1) (Min.) | 9.9 lbs |
| Loaded at -H1(P1) Max lbs. | 13.5 lbs |
| Loaded Height-H1 | 0.013in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K53 |
| Head Height (Max.) | 0.017in |
| Thickness (Max.) | 0.009in |
