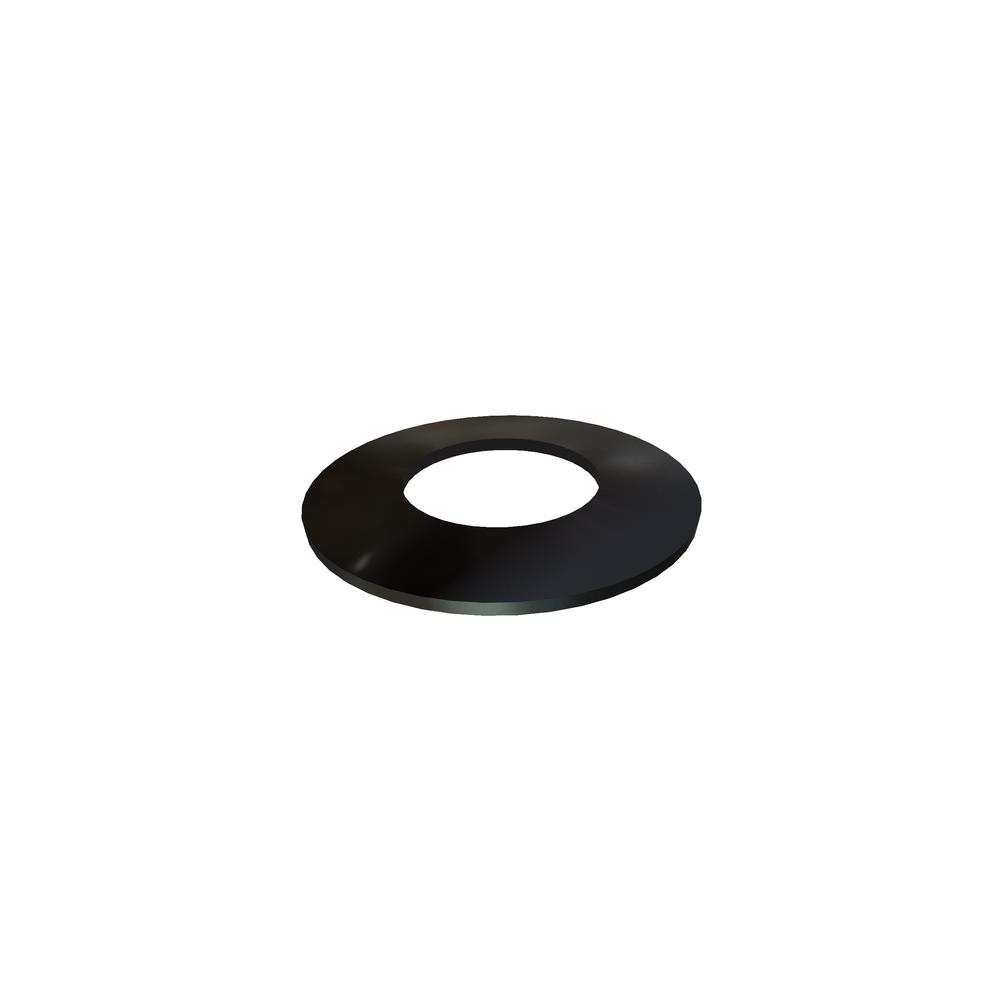

1/8 BELLEVILLE WASHER SST
B0250-009S
| Item Id | B0250-009S |
| Description | 1/8 BELLEVILLE WASHER SST RoHS |
| Alternate Codes | 9713K53 |
| Extended Description | .250 .125 .0086 |
| Packaging | EA |
| Additional Industry Cross Reference | 9713K53 |
| Brand | ASSOCIATED SPRING |
| Finish | Plain |
| Head Height (Max.) | 0.017in |
| Hole Size | 0.250in |
| ID | 0.125in |
| Load At Flat position (lbs.) | 16.9 lbs |
| Loaded at -H1(P1) (Min.) | 9.9 lbs |
| Loaded at -H1(P1) Max lbs. | 13.5 lbs |
| Loaded Height-H1 | 0.013in |
| Material | Stainless Steel |
| OD | 102 |
| Recommended For Screw Size | 1/8 |
| Thickness (Max.) | 0.009in |
| Type | Belleville Washer |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
