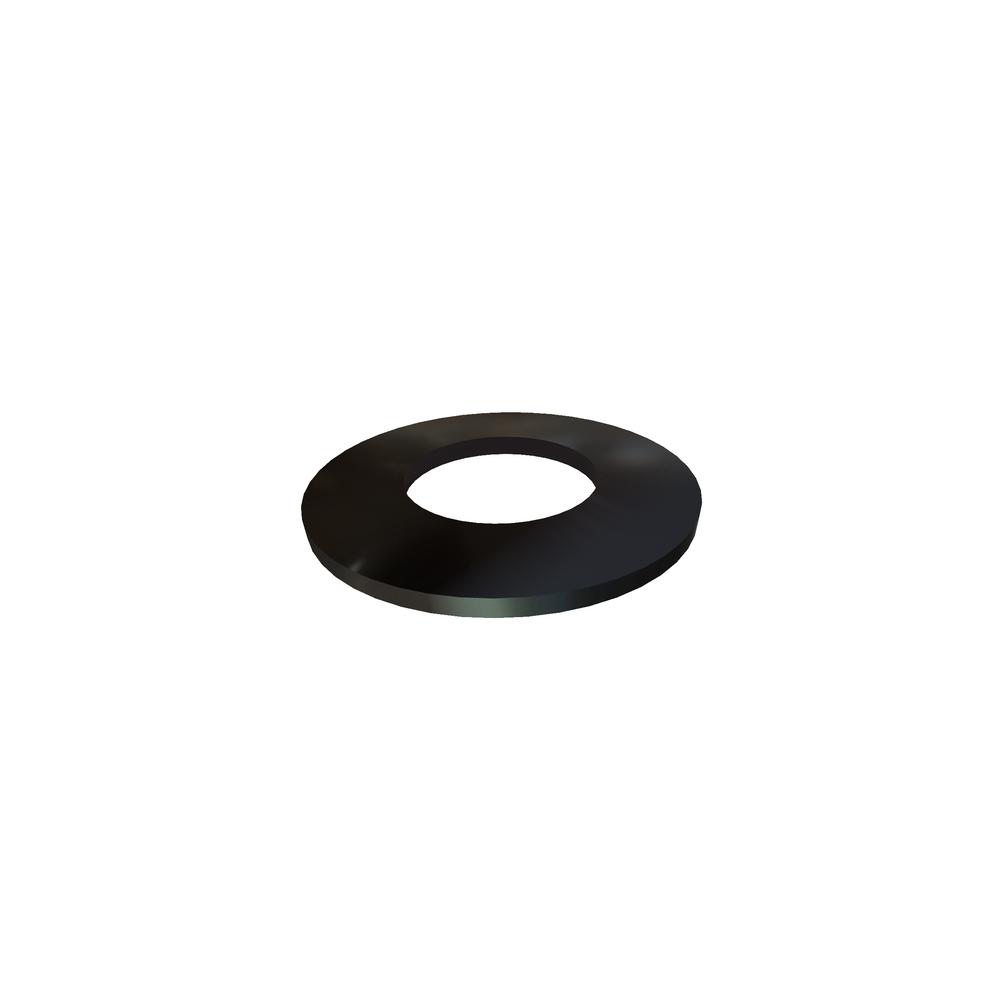

Image for reference purposes only. Actual product may vary.
B0281-015S
#6 BELLEVILLE WASHER SST .281 .138 .015
Alternate Codes: 28-022-008, 9713K55
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs |
|---|---|
| $2.132 | $1.640 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| ID | 0.138in |
| OD | 120 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Stainless Steel |
| Head Height (Max.) | 0.023in |
| Thickness (Max.) | 0.015in |
| Units | Inch |
| Hole Size | 0.281in |
| Recommended For Screw Size | 6 |
| Load At Flat position (lbs.) | 62.0 lbs |
| Loaded at -H1(P1) (Min.) | 28.5 lbs |
| Loaded at -H1(P1) Max lbs. | 38.5 lbs |
| Loaded Height-H1 | 0.019in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9713K55 |
