Image for reference purposes only. Actual product may vary.
B0312-017

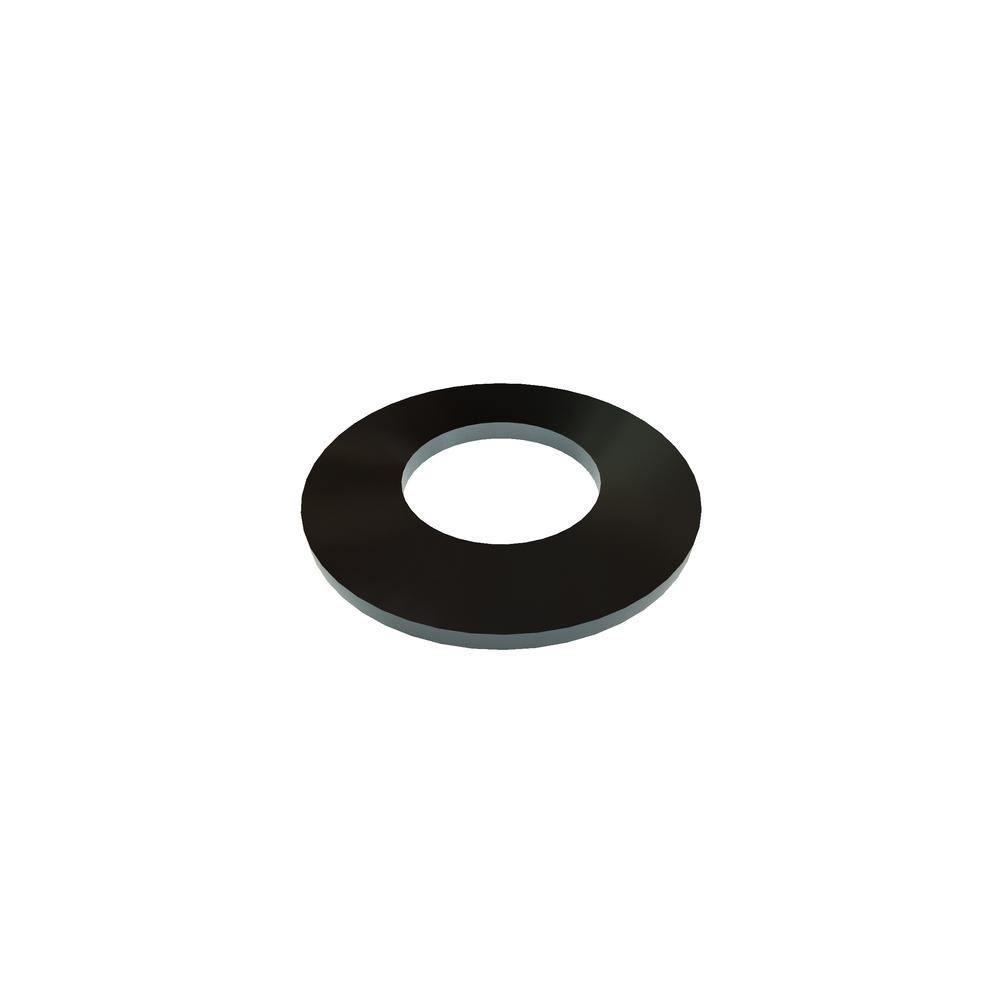

5/32 BELLEVILLE WASHER STL
Alternate Codes: 9712K57
.312 .156 .0166
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| ID | 0.156in |
| OD | 139 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.025in |
| Thickness (Max.) | 0.017in |
| Units | Inch |
| Hole Size | 0.313in |
| Recommended For Screw Size | 5/32 |
| Load At Flat position (lbs.) | 75.0 lbs |
| Loaded at -H1(P1) (Min.) | 35.0 lbs |
| Loaded at -H1(P1) Max lbs. | 48.0 lbs |
| Loaded Height-H1 | 0.021in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9712K57 |
