B0312-017S

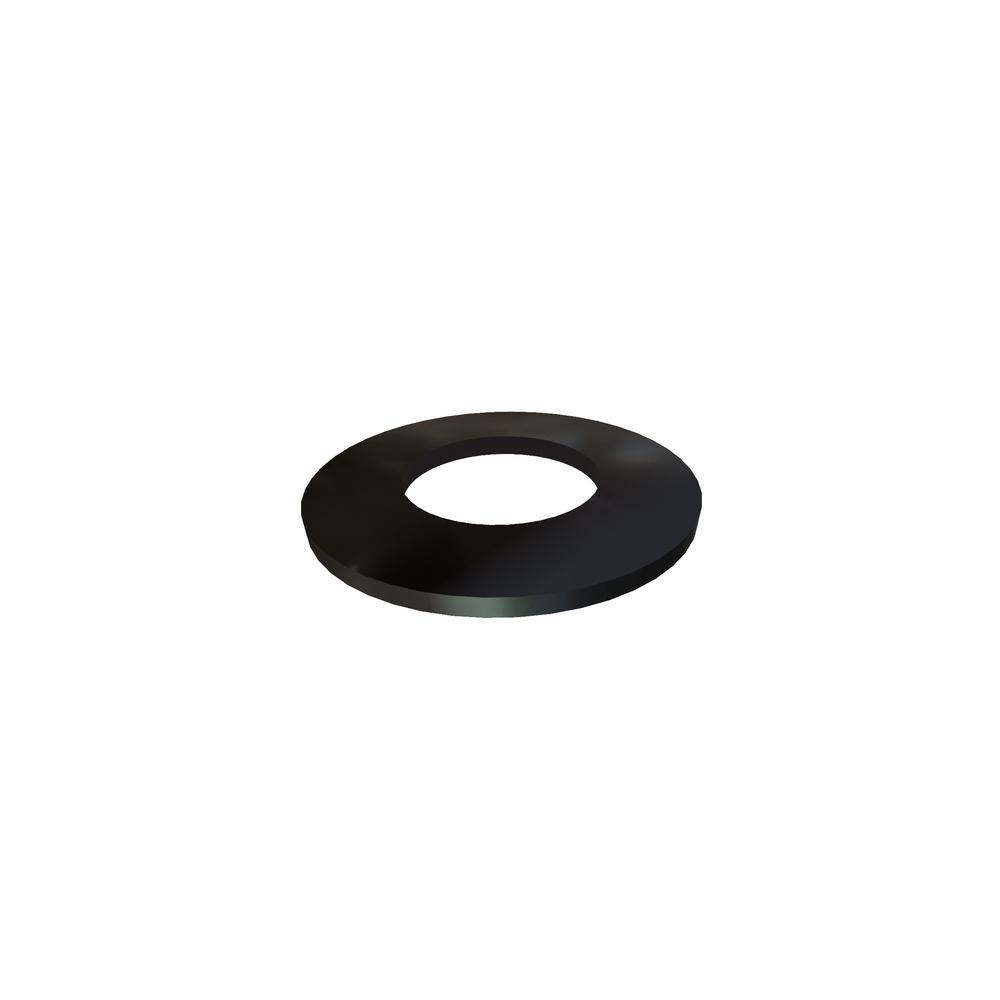

5/32 BELLEVILLE WASHER SST
Alternate Codes: 048658, 9713K57, D6-22
.312 .156 .0166
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.621 | $0.395 | $0.363 | $0.334 | $0.282 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.313in |
| Recommended For Screw Size | 5/32 |
| OD | 139 |
| ID | 0.156in |
| Load At Flat position (lbs.) | 75.0 lbs |
| Loaded at -H1(P1) (Min.) | 35.0 lbs |
| Loaded at -H1(P1) Max lbs. | 48.0 lbs |
| Loaded Height-H1 | 0.021in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9713K57 |
| Head Height (Max.) | 0.025in |
| Thickness (Max.) | 0.017in |
