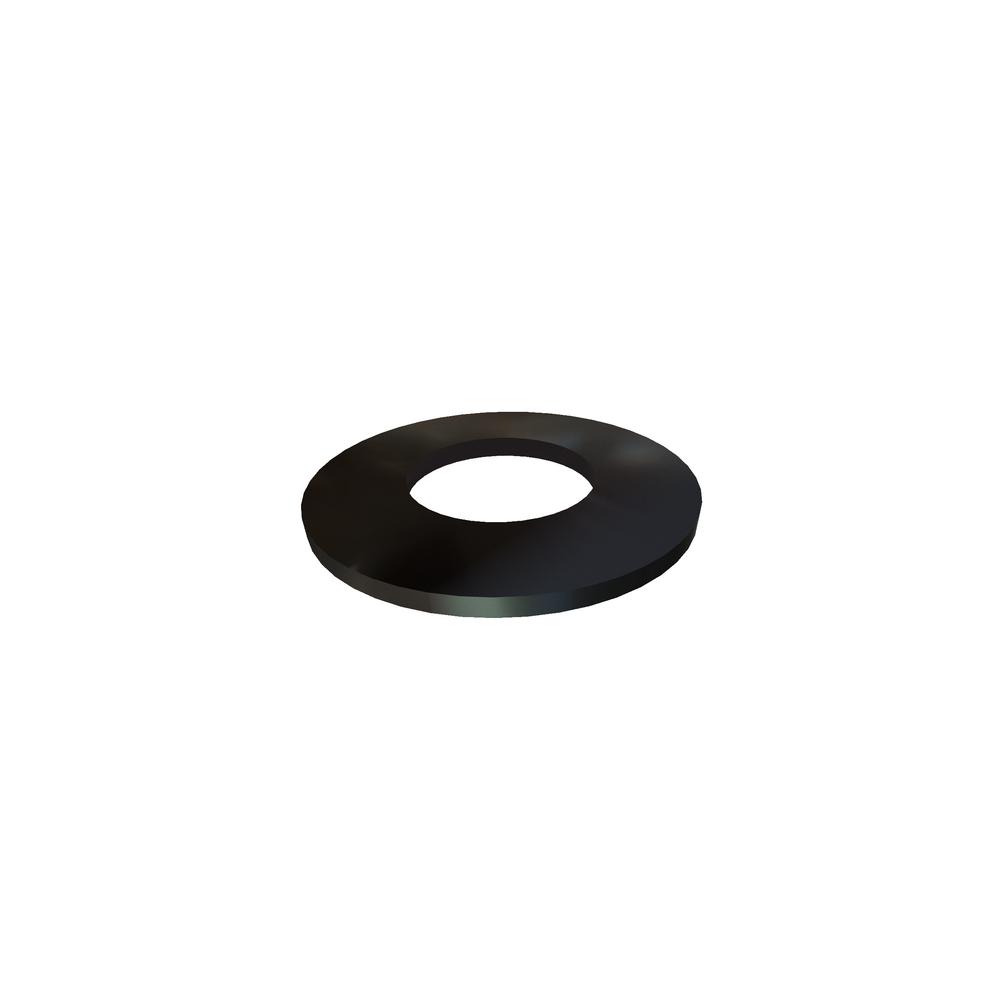

Image for reference purposes only. Actual product may vary.
B0343-019S
#8 BELLEVILLE WASHER SST .343 .164 .0185
Alternate Codes: 053163, 9713K14
RoHS
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $3.505 | $2.926 | $2.608 | $2.360 | $2.266 | Larger Quantities |
In Stock
Maximum stock already in cart
| ID | 0.164in |
| OD | 155 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Stainless Steel |
| Head Height (Max.) | 0.028in |
| Thickness (Max.) | 0.019in |
| Units | Inch |
| Hole Size | 0.344in |
| Recommended For Screw Size | 8 |
| Load At Flat position (lbs.) | 93.0 lbs |
| Loaded at -H1(P1) (Min.) | 43.0 lbs |
| Loaded at -H1(P1) Max lbs. | 68.0 lbs |
| Loaded Height-H1 | 0.023in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9713K14 |
