B0375-019

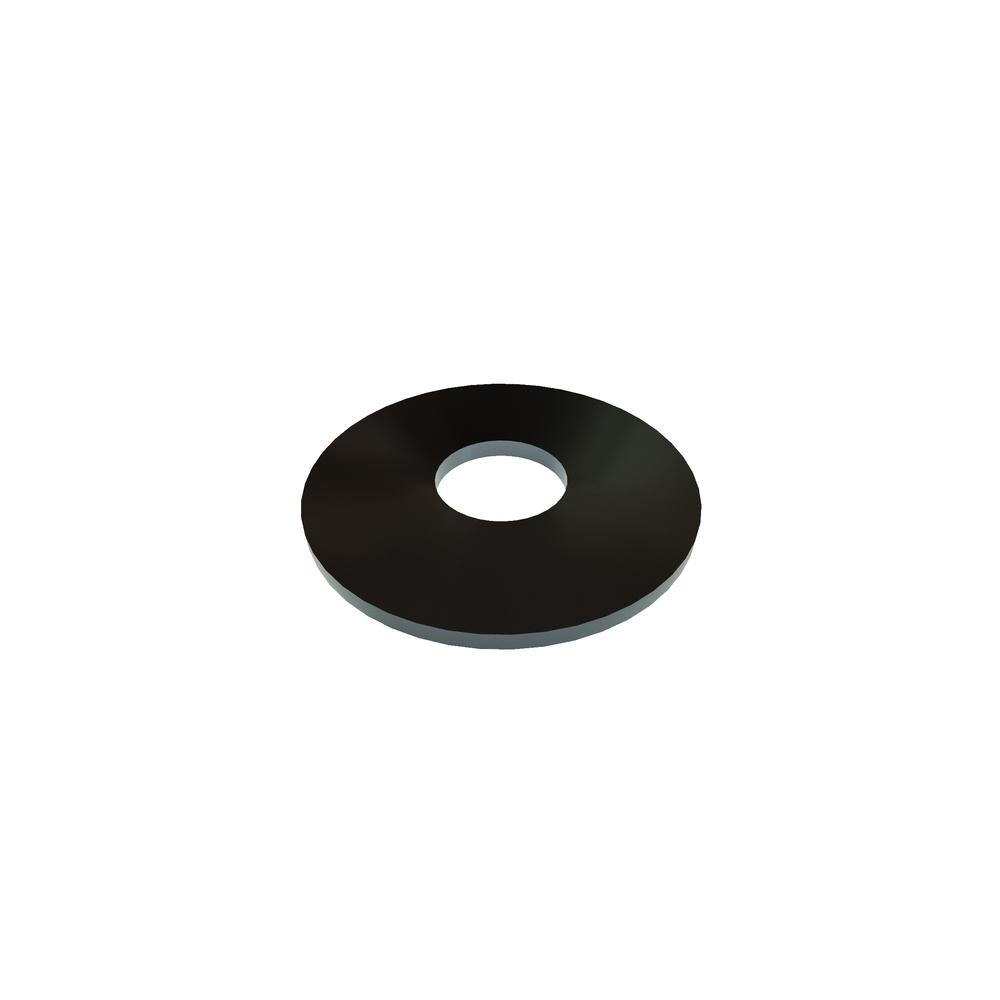

1/8 BELLEVILLE WASHER STL
Alternate Codes: 9712K16
.375 .125 .0185
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $1.380 | $0.878 | $0.806 | $0.743 | $0.627 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.250in |
| Recommended For Screw Size | 1/8 |
| OD | 177 |
| ID | 0.125in |
| Load At Flat position (lbs.) | 73.0 lbs |
| Loaded at -H1(P1) (Min.) | 35.3 lbs |
| Loaded at -H1(P1) Max lbs. | 47.7 lbs |
| Loaded Height-H1 | 0.023in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K16 |
| Head Height (Max.) | 0.028in |
| Thickness (Max.) | 0.019in |
