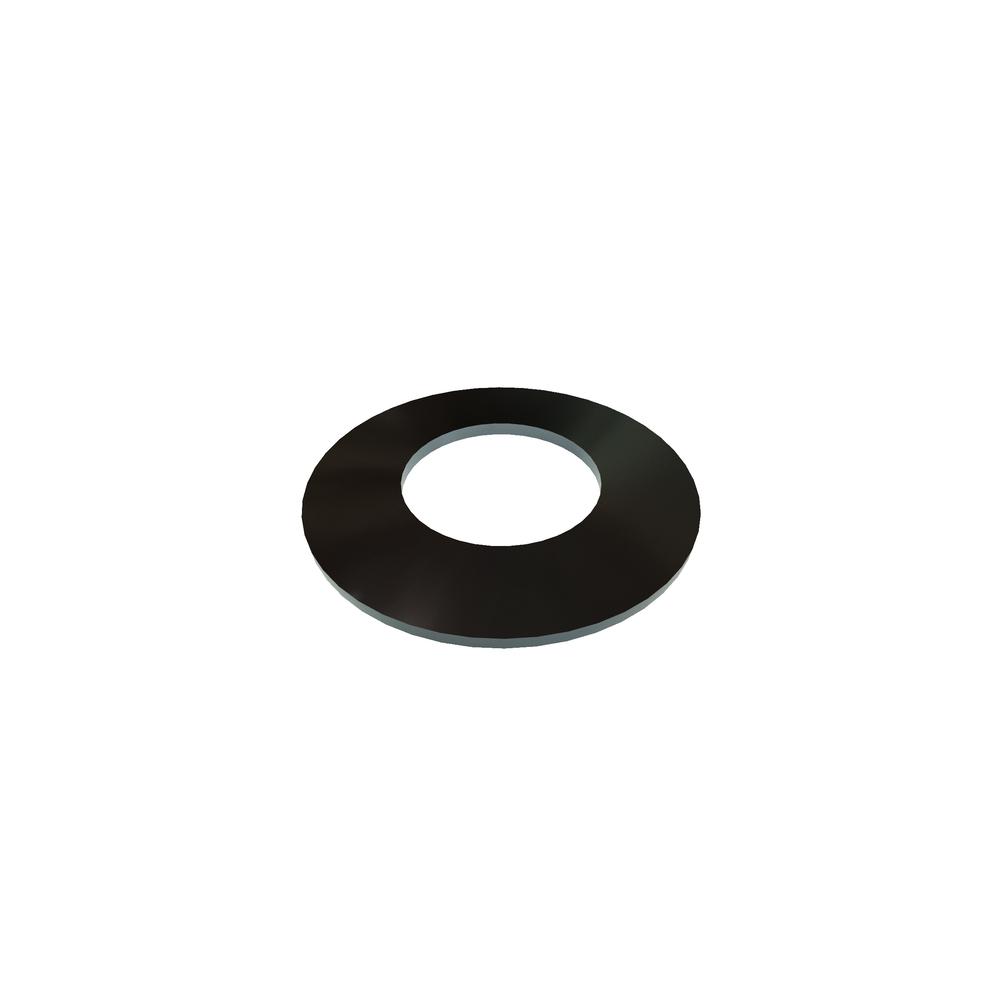

B0437-016
#12 BELLEVILLE WASHER STL .437 .220 .016
Alternate Codes: 9712K17
RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.438in |
| Recommended For Screw Size | 12 |
| OD | 210 |
| ID | 0.220in |
| Load At Flat position (lbs.) | 60.0 lbs |
| Loaded at -H1(P1) (Min.) | 34.0 lbs |
| Loaded at -H1(P1) Max lbs. | 46.0 lbs |
| Loaded Height-H1 | 0.023in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K17 |
| Head Height (Max.) | 0.031in |
| Thickness (Max.) | 0.016in |
