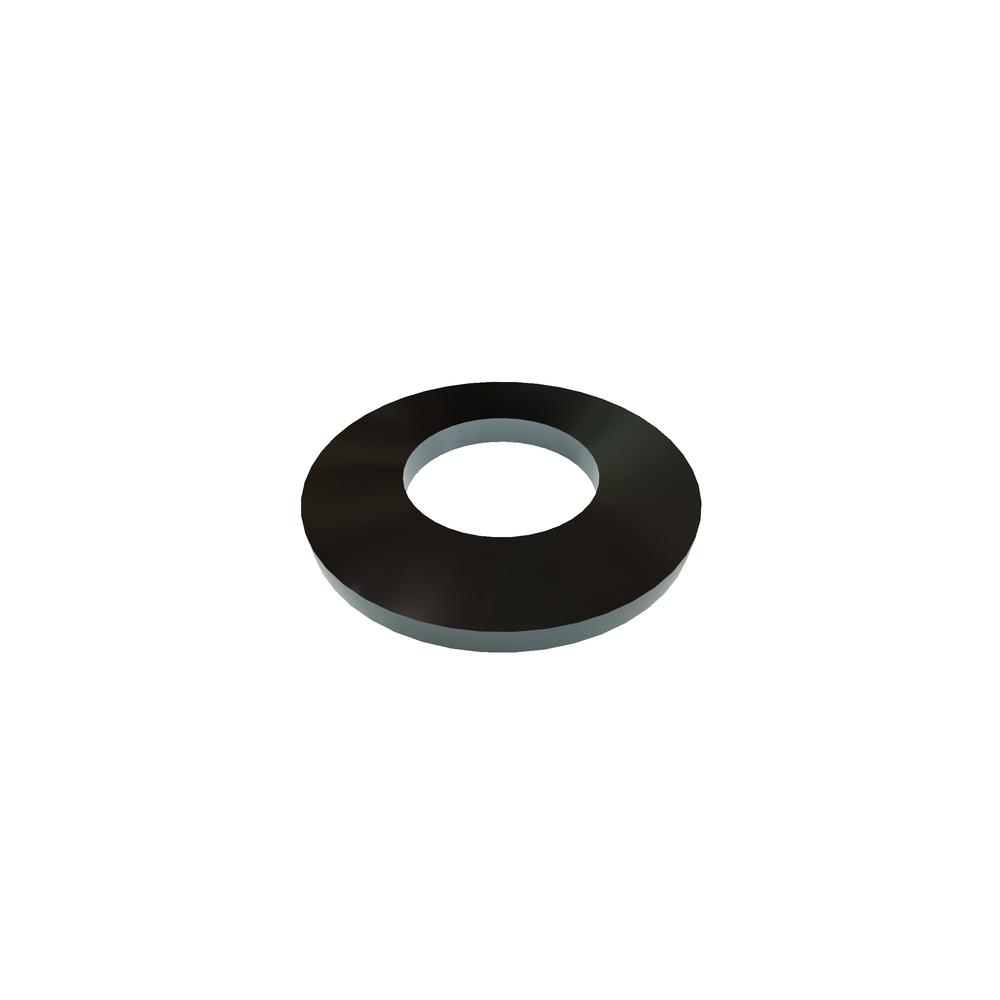

Image for reference purposes only. Actual product may vary.
B0437-022
#6 BELLEVILLE WASHER STL .437 .138 .022
Alternate Codes: 14819
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| ID | 0.138in |
| OD | 120 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.032in |
| Thickness (Max.) | 0.022in |
| Units | Inch |
| Hole Size | 0.281in |
| Recommended For Screw Size | 6 |
| Load At Flat position (lbs.) | 99.0 lbs |
| Loaded at -H1(P1) (Min.) | 63.3 lbs |
| Loaded at -H1(P1) Max lbs. | 46.8 lbs |
| Loaded Height-H1 | 0.027in |
| Brand | ASSOCIATED SPRING |
