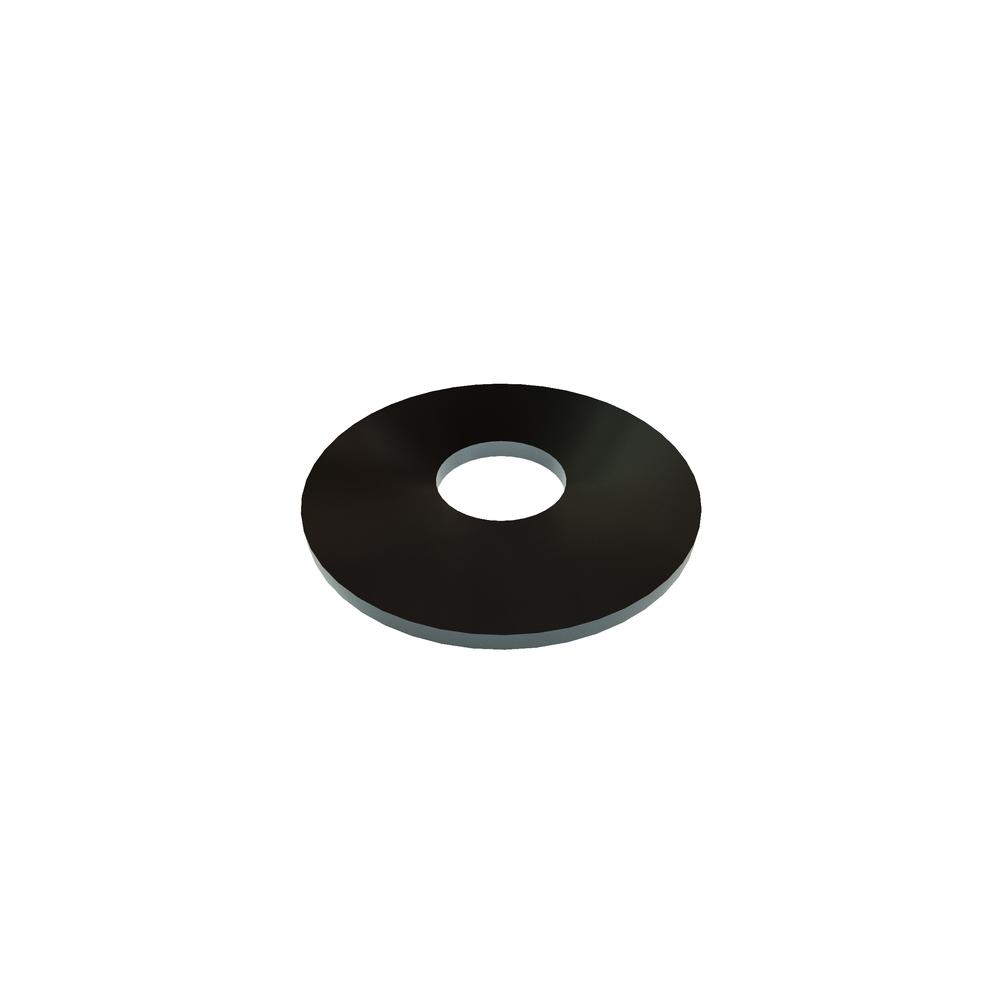

Image for reference purposes only. Actual product may vary.
B0499-025
#8 BELLEVILLE WASHER SST .500 .164 .025
Alternate Codes: 558-0002
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $3.484 | $2.680 | $2.178 | $1.936 | $1.742 | Larger Quantities |
In Stock
Maximum stock already in cart
| ID | 0.164in |
| OD | 240 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.037in |
| Thickness (Max.) | 0.025in |
| Units | Inch |
| Hole Size | 0.344in |
| Recommended For Screw Size | 8 |
| Load At Flat position (lbs.) | 131.0 lbs |
| Loaded at -H1(P1) (Min.) | 83.4 lbs |
| Loaded at -H1(P1) Max lbs. | 61.6 lbs |
| Loaded Height-H1 | 0.031in |
| Brand | ASSOCIATED SPRING |
